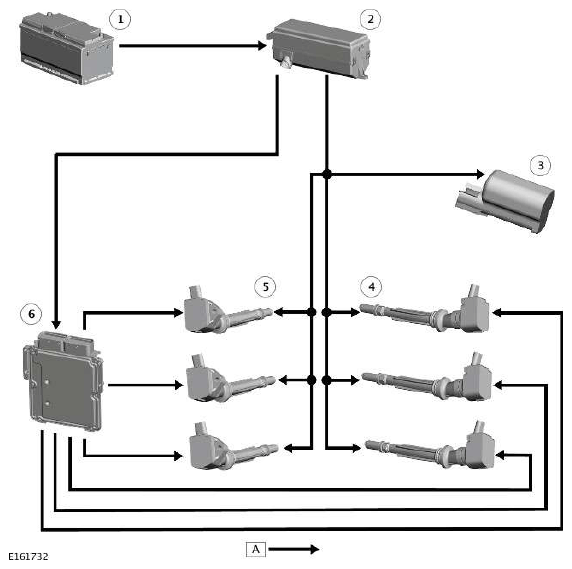

Control Diagram
WARNING: This page is about a different variant/trim than selected.
NOTE:
A
= Hardwired.
 Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
|
| Item |
Description |
| 1 |
Battery |
| 2 |
Engine Junction Box (EJB) |
| 3 |
Radio Frequency Interference (RFI) Suppressor |
| 4 |
Ignition Coils (3 off) - Bank 2 |
| 5 |
Ignition Coils (3 off) - Bank 1 |
| 6 |
Engine Control Module (ECM) |
