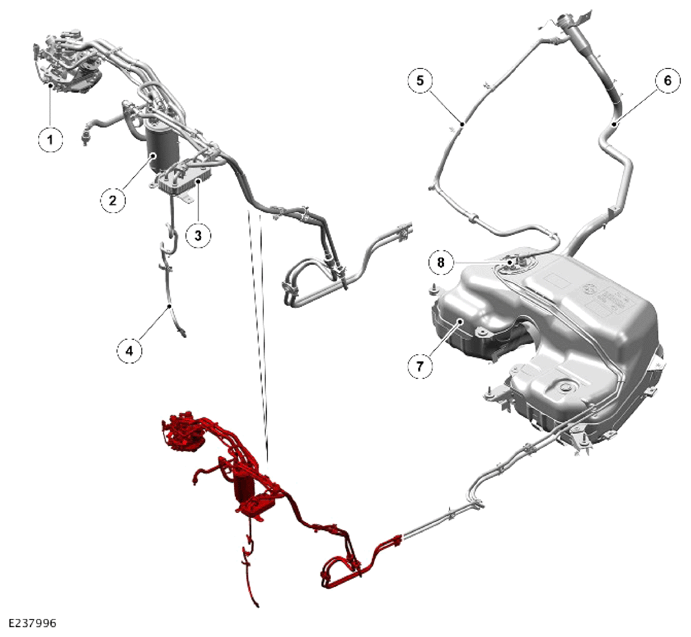

TDV6 3.0L Diesel - Fuel Tank And Lines
WARNING: This page is about a different variant/trim than selected.
 Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
|
| ITEM |
DESCRIPTION |
| 1 |
High Pressure (HP) fuel pump |
| 2 |
Fuel filter assembly |
| 3 |
Fuel cooler |
| 4 |
Fuel filter water drain pipe |
| 5 |
Pipe - fuel tank breather |
| 6 |
Pipe - Fuel filler assembly |
| 7 |
Fuel tank assembly |
| 8 |
Fuel pump module |
