Thermostatic Valve

WARNING: This page is about a different variant/trim than selected.

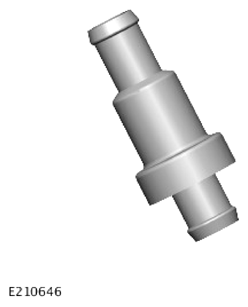

G14067953Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

The inline thermostat prevents the flow of the Automatic Transmission Fluid (ATF) until the ATF achieves the correct working temperature.
