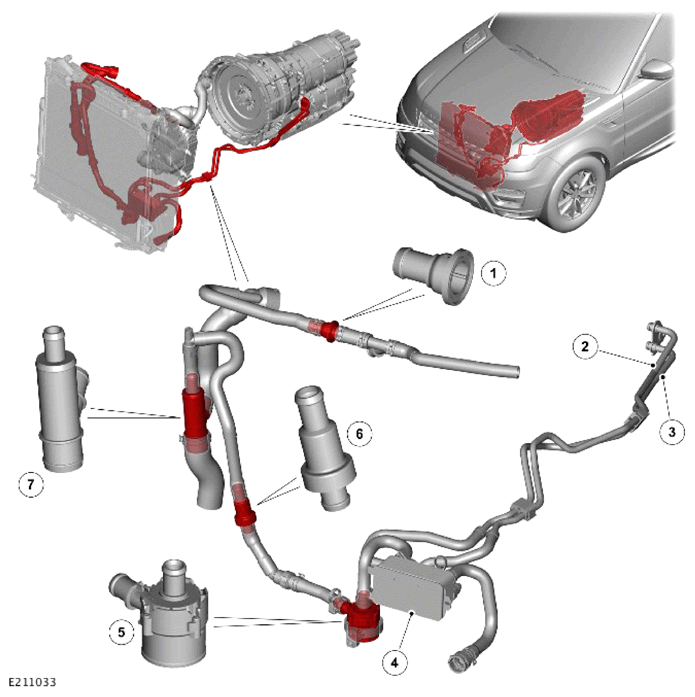

Component Location
WARNING: This page is about a different variant/trim than selected.
 Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
|
| Item |
Description |
| 1 |
One way valve - Radiator upper hose |
| 2 |
Automatic Transmission Fluid (ATF) return pipe connection |
| 3 |
ATF supply pipe connection |
| 4 |
ATF cooler |
| 5 |
Auxiliary coolant pump - Automatic Transmission Fluid (ATF) cooler |
| 6 |
Thermostatic valve |
| 7 |
Pressure operated one way valve |
