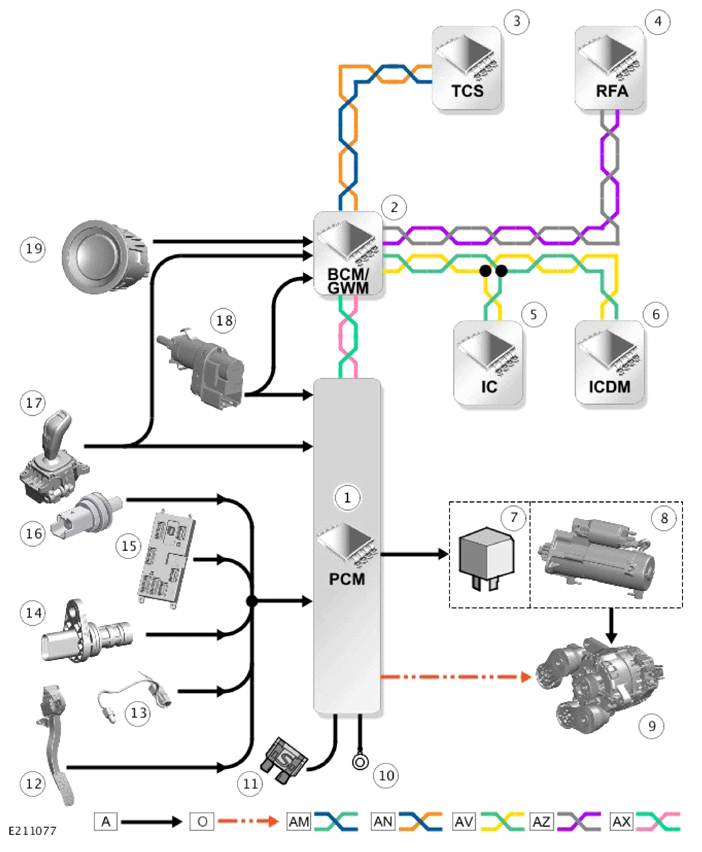

Control Diagram
WARNING: This page is about a different variant/trim than selected.
A = Hardwired: AM = High Speed (HS) Controller Area Network (CAN) chassis systems bus: AN = High Speed (HS) Controller Area Network (CAN) powertrain systems bus: AV = High Speed (HS) Controller Area Network (CAN) comfort systems bus: AZ = High Speed (HS) Controller Area Network (CAN) Body systems bus: AX = FlexRay: O= Local Interconnect Network (LIN).
| Item | Description |
|---|---|
| 1 | Powertrain Control Module (PCM) |
| 2 | Body Control Module/Gateway Module (BCM/GWM) assembly |
| 3 | Transmission Control Switch (TCS) |
| 4 | Remote Function Actuator (RFA) |
| 5 | Instrument Cluster (IC) |
| 6 | Interactive Control Display Module (ICDM) |
| 7 | Starter relay - Engine Junction Box 2 (EJB 2) |
| 8 | Starter motor |
| 9 | Belt Integrated Starter Generator (BISG) |
| 10 | Ground |
| 11 | Power supply |
| 12 | Accelerator Pedal Position (APP) sensor |
| 13 | Ambient Air Temperature (AAT) sensor |
| 14 | Crankshaft Position (CKP) sensor |
| 15 | Crank signal - Body Control Module/Gateway Module (BCM/GWM) assembly |
