External Power Supply Cable
WARNING: This page is about a different variant/trim than selected.
WARNING:
- Do not do any work on the external power supply cables until the High Voltage (HV) system on the vehicle is powered down.
- Do not do any work on the external power supply cable when the vehicle is connected to an external power supply.

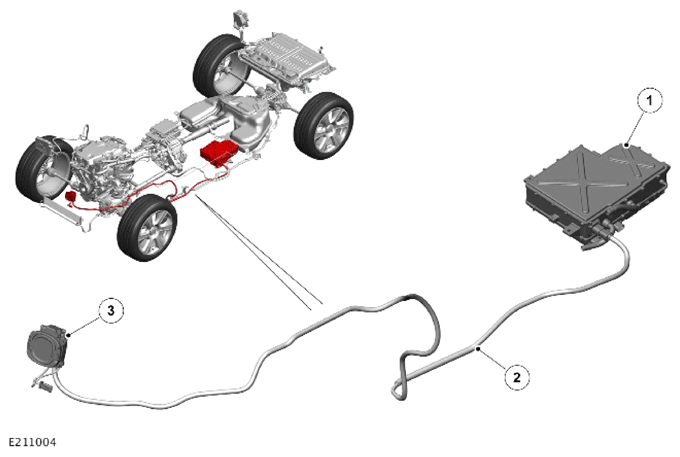

| Item | Description |
|---|---|
| 1 | PHEV battery onboard charger |
| 2 | External power supply cable |
| 3 | Charging port |
The external power supply cable contains 2 insulated wires for the high voltage Alternating Current (AC). The external power supply cable is the electrical connection between the charging port and the PHEV battery onboard charger. The high voltage wires also have screening around them in the cable.
