Component Location - 1 Of 1
WARNING: This page is about a different variant/trim than selected.
WARNING:
Do not do any work on the High Voltage (HV) electric system until the HV system on the vehicle is powered down.

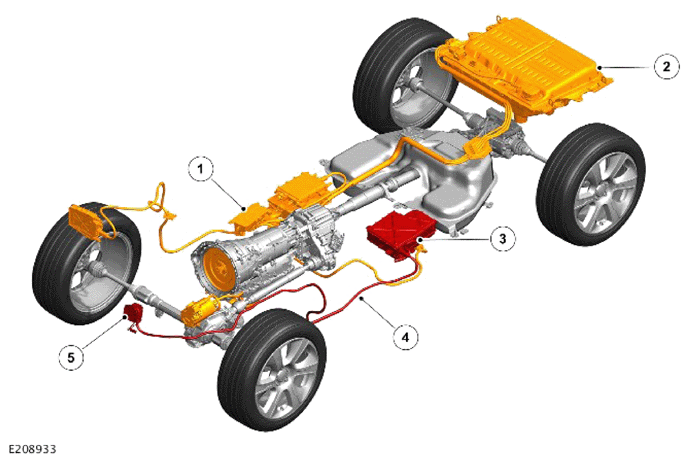

| Item | Description |
|---|---|
| 1 | High Voltage Junction Box (HVJB) |
| 2 | PHEV battery |
| 3 | PHEV battery onboard charger |
| 4 | High Voltage (HV) Alternating Current (AC) external power supply cable |
| 5 | Charging port |
