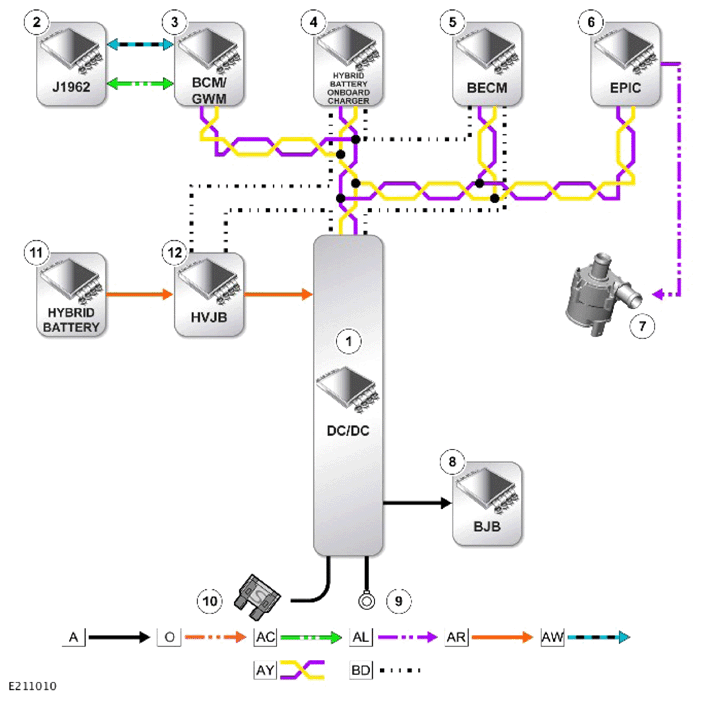

Control Diagram - 1 Of 1
WARNING: This page is about a different variant/trim than selected.
WARNING:
Do not do any work on the High Voltage (HV) electric system until the HV system on the vehicle is powered down.
A = Hardwired: AC = Diagnostic: AL = Pulse Width Modulation (PWM): AR = High Voltage: AW = Ethernet: AY = High Speed (HS) Controller Area Network (CAN) power mode zero systems bus: BD = HV interlock loop.
| Item | Description |
|---|---|
| 1 | Direct Current to Direct Current (DC/DC) converter |
| 2 | Diagnostic connection (J1962) |
| 3 | Body Control Module/Gateway Module (BCM/GWM) |
| 4 | PHEV battery onboard charger |
| 5 | Battery Energy Control Module (BECM) |
| 6 | Electric Power Inverter Converter (EPIC) |
| 7 | PHEV battery coolant pump |
| 8 | Battery Junction Box (BJB) |
| 9 | Ground |
| 10 | Power supply |
| 11 | PHEV battery |
| 12 | High Voltage Junction Box (HVJB) |
