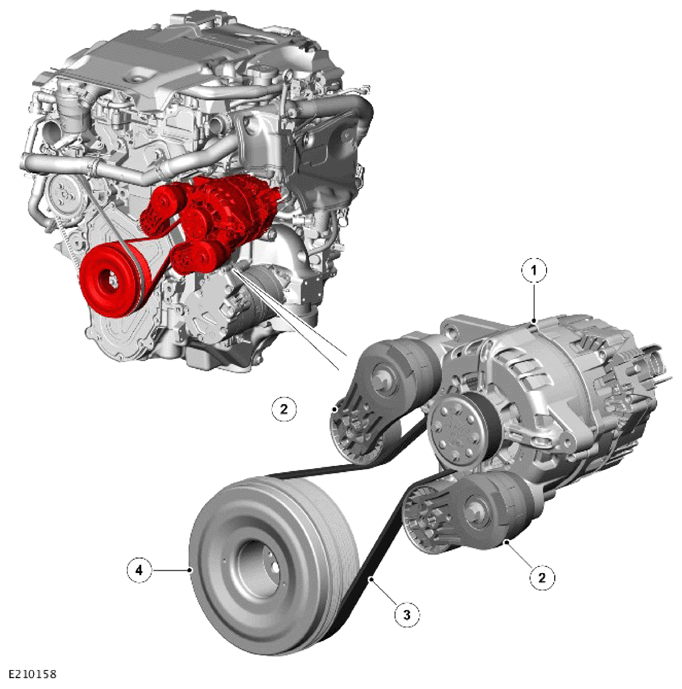

Component Location
WARNING: This page is about a different variant/trim than selected.
 Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
|
| Item |
Description |
| 1 |
Belt Integrated Starter Generator (BISG) |
| 2 |
Belt tensioners |
| 3 |
BISG
drive belt |
| 4 |
Crankshaft pulley |
