Engine Oil Vacuum Draining And Filling (G1509134): Filling

WARNING: This page is about a different variant/trim than selected.

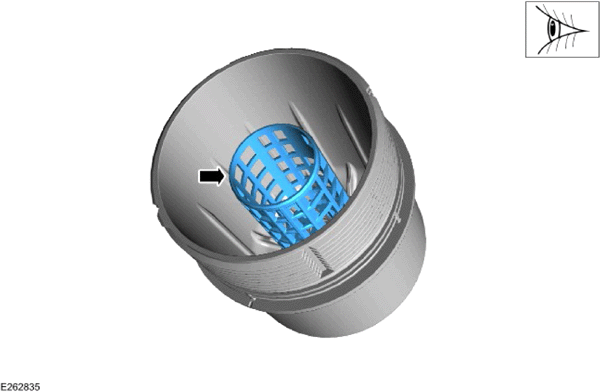

CAUTION: Make sure the engine oil filter housing center tube is installed to the engine oil filter housing before installing the new engine oil filter, as shown in the illustration. Failure to do this will cause low engine oil pressure when starting the engine, resulting in premature engine wear.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Check the position of the center tube.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Clean the components.
- Install a new oil filter element to the oil filter cover.
  Renew Part: Oil filter Quantity: 1 .
- Install a new oil filter cover O-ring seal.
  Renew Part: Oil filter O-ring seal(s) Quantity: 1 .
- Lubricate the O-ring seal with clean engine oil.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 28 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Fill the engine with the recommended oil to the correct level.
  Refer to: SPECIFICATIONS
- Clean any residual engine oil from the oil filler cap area.
Refer to: ENGINE COVER - TDV6 3.0L DIESEL/TDV6 3.0L DIESEL - GEN 1.5/TDV6 3.0L DIESEL - GEN 2
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
CAUTION: Make sure that the vehicle has been left for 5 minutes from filling with oil.
- Start the engine and allow to run for 10 minutes, stop the engine.
- Check for leaks.
CAUTION:
- Make sure that the selector lever is in the park (P) position.
- Make sure that the hood is open.
- Set the ignition to the ON position.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Press the left-hand OK button to access the Instrument Cluster (IC) Main Menu.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Press the left-hand directional button and select Service Menu.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Press the left-hand OK button.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Press the left-hand directional button and select the Oil Level display.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Press the left-hand OK button to access the Oil Level display.
CAUTION: Make sure that the hood is open.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Press the speed control cancel button twice within 2 seconds while being on the oil level display.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- The message center displays the actual oil level in service mode.
- Only after having started and run the engine for 10 minutes (as indicated in Step 7), switch off the engine, then stabilizing for 10 minutes, take a reading from the oil level display and, if necessary top up with engine oil.
Set the ignition to the OFF position.
Allow 10 minutes for the engine oil level to stabilize if there has been additional oil top up.
NOTE: The following steps are to update the average oil level value.
Repeat step 8 to 14 to access the oil level display in service mode.
NOTE: The actual volume displayed on the bar graph will be written into the electronic control unit as a new value.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Press and hold the speed control cancel button for more than 5 seconds.
- The message center display the current oil level.
NOTE: Close the hood.
Set the ignition to the OFF position.
Set the ignition to the ON position.
NOTE: The following steps are to check the current oil level in a customer mode.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Press the left-hand OK button to access the Instrument Cluster (IC) Main Menu.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Press the left-hand directional button and select Service Menu.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Press the left-hand OK button.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Press the left-hand directional button and select the Oil Level display.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Press the left-hand OK button and follow the instructions.
- NOTE: If the message shows "Not available" wait for further 10 mins to allow the oil level to stabilize.

  Make sure that the average oil level value has now been updated.
