Engine Oil Vacuum Draining And Filling (G1509134): Draining

WARNING: This page is about a different variant/trim than selected.

WARNING: The spilling of hot engine oil is unavoidable during this procedure, care must be taken to prevent scalding.

CAUTION: Make sure the engine is warm.

NOTE: Engine oil vacuum draining and filling is the recommended procedure for engine oil change during a scheduled service. Scheduled service labour times are calculated using this method.

Refer to: ENGINE COVER - TDV6 3.0L DIESEL/TDV6 3.0L DIESEL - GEN 1.5/TDV6 3.0L DIESEL - GEN 2
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Rotate the oil filter element housing six complete turns counter-clockwise.
- Allow the engine oil to drain from the oil filter element housing for two minutes.
- Remove the oil filter element housing.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

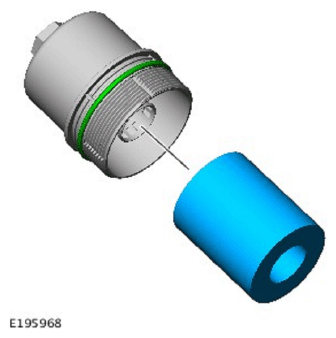

- Remove and discard the O-ring seals.
- Remove and discard the engine oil filter element.
NOTE: Some variation in the illustrations may occur, but the essential information is always correct.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Using the oil vacuum pump drain the oil out through the oil extraction tube.

Special Tool(s): JLR-303-1644
Remove the oil vacuum pump.
