Cylinder Numbering
WARNING: This page is about a different variant/trim than selected.
DIN standard cylinder numbering
NOTE:
Front of engine is at cylinder 1
 Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
|
| ITEM |
DESCRIPTION |
| A |
Engine rear |
DIN standard cylinder firing order: 1, 4, 2, 5, 3, 6

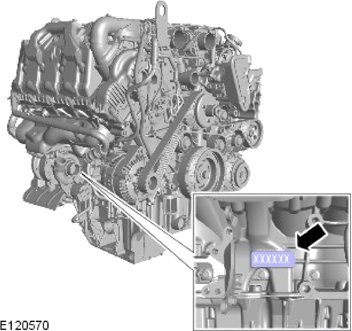

Engine Serial Number
 Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
|
Engine serial number is stamped on the right side of the cylinder block.
