Camshaft Timing Components - Primary Drive

WARNING: This page is about a different variant/trim than selected.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

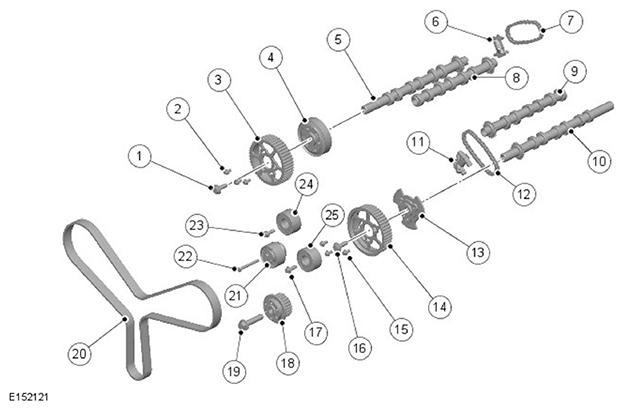

ITEM	DESCRIPTION
1	Bolt
2	Bolt (3 off)
3	Right camshaft timing pulley
4	Camshaft hub
5	Exhaust camshaft - Bank 1
6	Secondary timing chain tensioner - Bank 1
7	Secondary timing chain - Bank 1
8	Intake camshaft - Bank 1
9	Intake camshaft - Bank 2
10	Exhaust camshaft - Bank 2
11	Secondary timing chain tensioner - Bank 2
12	Secondary timing chain - Bank 2
13	Camshaft hub
14	Left camshaft timing pulley
15	Bolt (3 of)
16	Bolt
17	Bolt
18	Crankshaft drive gear
19	Bolt
20	Timing belt
21	Timing belt tensioner
22	Bolt
23	Bolt
24	Idler pulley
25	Idler pulley

Primary drive is provided by a toothed timing belt from the crankshaft to the exhaust camshaft gears of each cylinder bank via two idler pulleys and a tensioner.

Timing belt adjustment is carried out by the eccentric type tensioner mounted on the right front face of the cylinder block.

The primary drive cover is secured to the front of the cylinder block, cylinder heads, intake manifolds and oil pump housing. The cover is sealed with a gasket. A bridge piece closes the back of the cover in between the cylinder heads.
