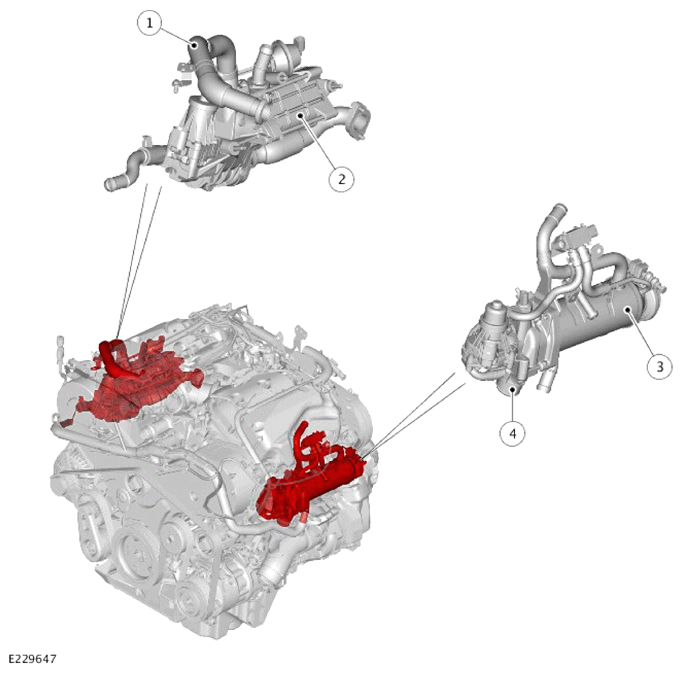

Component Location - 1 Of 3 - Exhaust Gas RECIRCULATION System
WARNING: This page is about a different variant/trim than selected.
 Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
|
| ITEM |
DESCRIPTION |
| 1 |
Right Exhaust Gas Recirculation (EGR) outlet pipe |
| 2 |
Right EGR cooler and housing |
| 3 |
Left EGR cooler and housing |
| 4 |
Clean air inlet |
