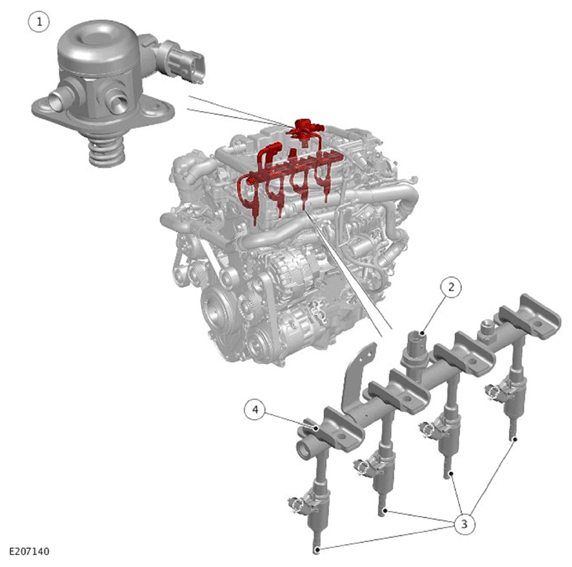

Component Location
WARNING: This page is about a different variant/trim than selected.
 Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
|
| Item |
Description |
| 1 |
High Pressure (HP) fuel pump |
| 2 |
Fuel Rail Pressure and Temperature (FRPT) sensor |
| 3 |
Fuel injector (4 off) |
| 4 |
Fuel rail |
