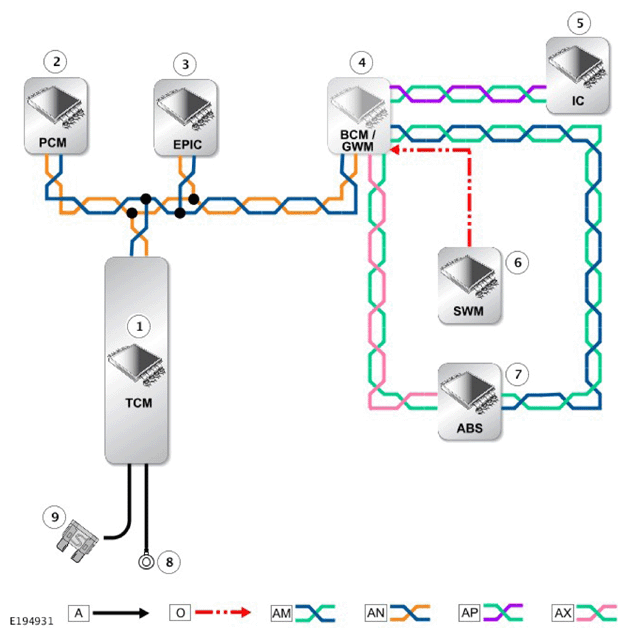

Control Diagram
WARNING: This page is about a different variant/trim than selected.
A = Hardwired: O = Local Interconnect Network (LIN): AM = HS CAN chassis systems bus: AN = HS CAN powertrain systems bus: AP = Medium Speed (MS) CAN comfort systems bus: AX = Flexray bus.
| ITEM | DESCRIPTION |
|---|---|
| 1 | TCM |
| 2 | PCM |
| 3 | Electric Power Inverter Converter Control Module (EPIC) |
| 4 | Body Control Module/Gateway Module (BCM/GWM) assembly |
| 5 | IPC |
| 6 | Steering Wheel Module (SWM) - Paddle switch signals |
| 7 | ABS |
| 8 | Ground |
| 9 | Power supply from Engine Junction Box (EJB) |
