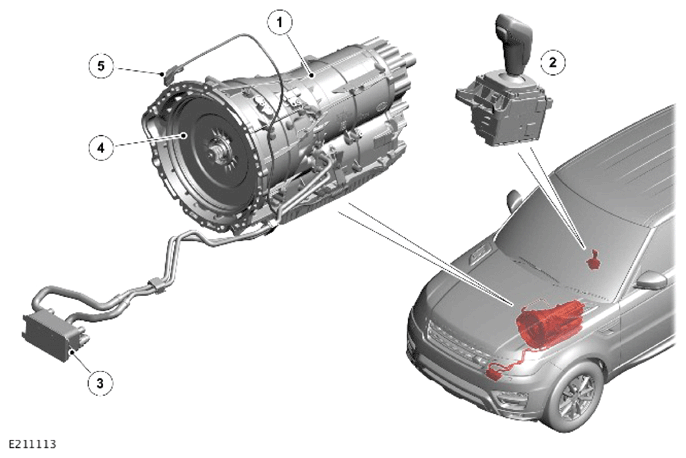

Component Location
WARNING: This page is about a different variant/trim than selected.
 Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
|
| ITEM |
DESCRIPTION |
| 1 |
ZF 8P75XPH Automatic transmission |
| 2 |
Transmission Control Switch (TCS) |
| 3 |
Automatic Transmission Fluid (ATF) cooler |
| 4 |
Hybrid drive assembly (Dual mass flywheel, engine disconnect clutch and Motor Generator (MG)) |
| 5 |
Emergency Park Release (EPR) lever and cable assembly |
