Component Location

WARNING: This page is about a different variant/trim than selected.

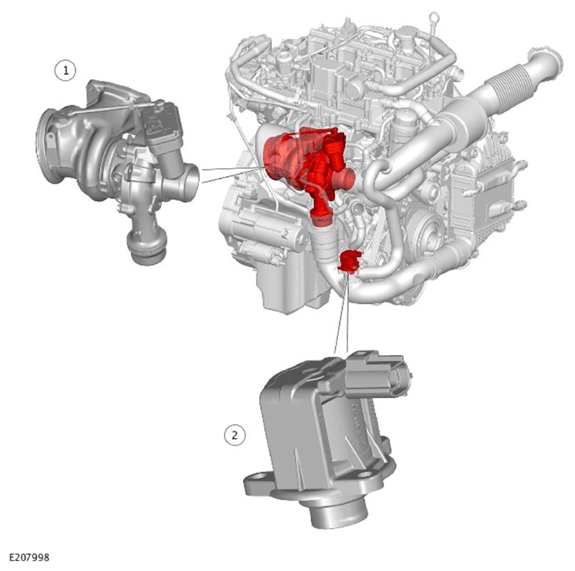

G12009364Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Item Description
1 Turbocharger
2 Compressor Recirculation Valve (CRV)
