Component Location - Sheet 1 Of 2 - Vehicles With Single Turbocharger

WARNING: This page is about a different variant/trim than selected.

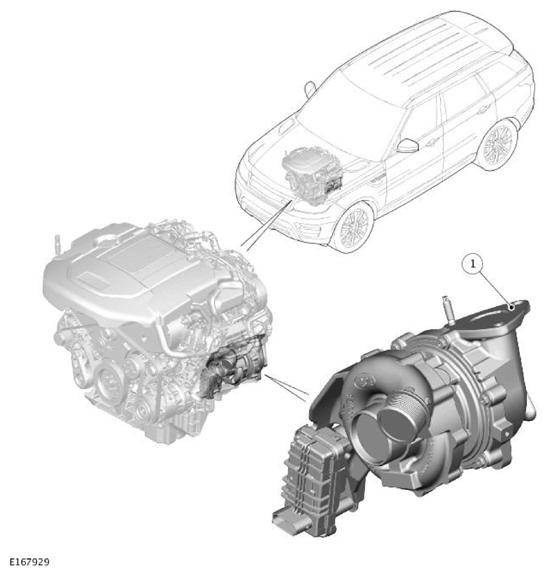

G11710173Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
ITEM DESCRIPTION
1 Variable Geometry Turbine (VGT) turbocharger
