Oil Flow Diagrams
WARNING: This page is about a different variant/trim than selected.

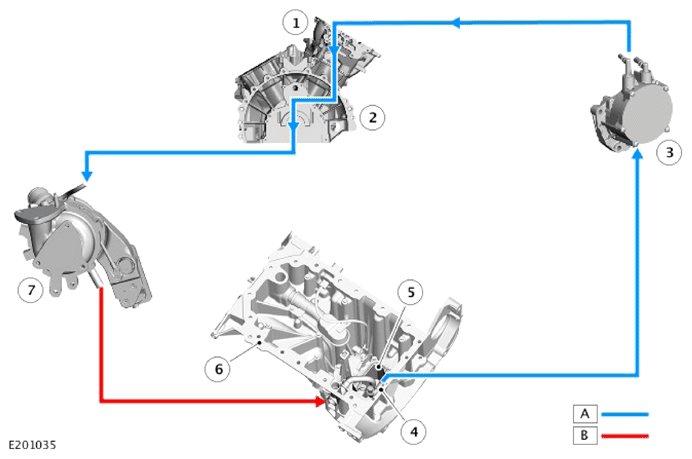

Single Turbocharger Oil Flow
 Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
|
A = COOL OIL: B = HOT OIL.
| ITEM |
DESCRIPTION |
| 1 |
Cylinder head |
| 2 |
Cylinder block |
| 3 |
Vacuum pump (Vacuum and turbocharger scavenge oil pump) |
| 4 |
Turbocharger Oil Supply Filter |
| 5 |
Turbocharger Oil Reservoir |
| 6 |
Oil Pan |
| 7 |
Turbocharger |
