TDV6 3.0L Diesel - Gen 2 Single Turbocharger Operation
WARNING: This page is about a different variant/trim than selected.

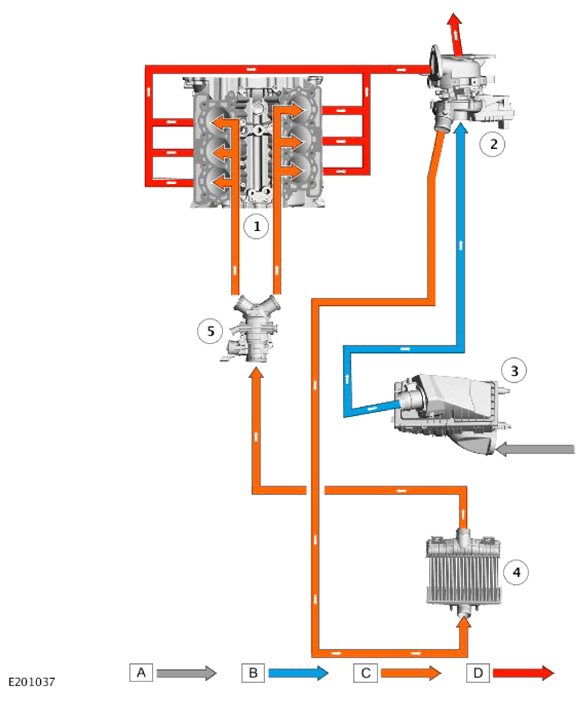

A = DIRTY AIR: B = CLEAN AIR: C = COMPRESSED AIR: D = EXHAUST GAS.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Engine |
| 2 | Variable Geometry Turbine (VGT)- Turbocharger |
| 3 | Intake air filter |
| 4 | Charge air cooler |
| 5 | Electric throttle |
Fresh air is drawn through the left intake air filter to the turbocharger compressor. The compressed air then passes through the charge air cooler and electric throttle to the intake manifolds.
