Charge Air Cooler
WARNING: This page is about a different variant/trim than selected.

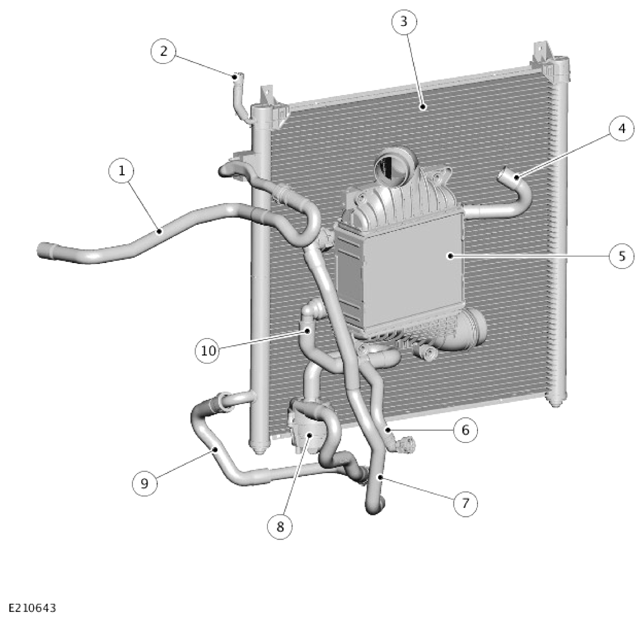

| ITEM | DESCRIPTION |
|---|---|
| 1 | Hose connection - Auxiliary radiator inlet |
| 2 | Bleed screw |
| 3 | Charge air radiator |
| 4 | Hose connection - Radiator |
| 5 | Charge air cooler |
| 6 | Hose connection - Motor Generator (MG) |
| 7 | Hose connection - Auxiliary radiator outlet |
| 8 | Charge air coolant pump |
| 9 | Hose connection - Charge air coolant pump to charge air radiator |
| 10 | Hose connection - Charge air cooler to charge air coolant pump |
The charge air cooling system comprises:
- Charge air cooler
- Charge air radiator
- Charge air coolant pump.
The charge air cooler is an air-to-water heat exchanger, providing charge air cooling in combination with an electric coolant pump.
The charge air cooler is used to reduce the intake air temperature which increases the density of the intake air delivered to the combustion chambers.
The charge air cooler has a stand alone cooling system with its own charge air radiator, charge air coolant pump and hoses. The only connection to the main cooling circuit is a pipe from the top of the charge air radiator to the top of the radiator. For additional information, refer to: Intake Air Distribution and Filtering - INGENIUM I4 2.0L Petrol
