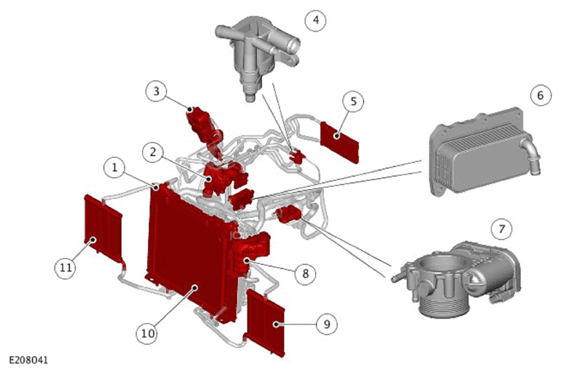

Component Location - 1 Of 2 - Front View
WARNING: This page is about a different variant/trim than selected.
 Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
|
| ITEM |
DESCRIPTION |
| 1 |
Radiator |
| 2 |
Turbocharger |
| 3 |
Fuel Fired Booster Heater (FFBH) - If equipped |
| 4 |
Separator |
| 5 |
Heater core |
| 6 |
Oil cooler |
| 7 |
Electric throttle |
| 8 |
Coolant expansion tank |
| 9 |
Auxiliary radiator - Left |
| 10 |
Charge air radiator |
| 11 |
Auxiliary radiator - Right |
