Exhaust Manifolds
WARNING: This page is about a different variant/trim than selected.
NOTE:

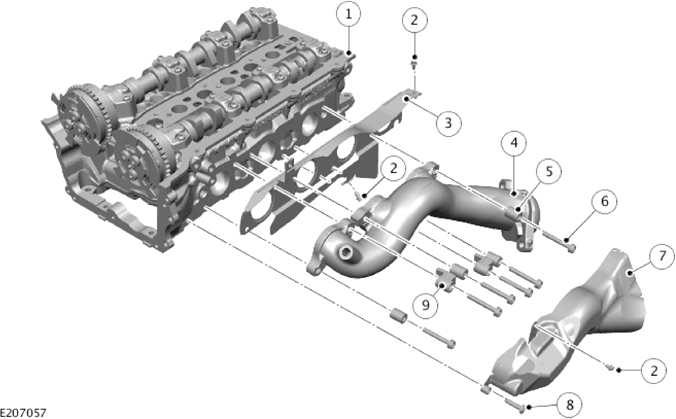

- Left (Bank 2) installation shown, right (Bank 1) is similar.
- Some variations in the illustration may occur, but the essential information is always correct.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Cylinder head |
| 2 | Bolt (3 off) |
| 3 | Layered gasket |
| 4 | Exhaust manifold |
| 5 | Spacer (4 off) |
| 7 | Bolt (6 off) |
| 8 | Exhaust manifold heatshield |
| 8 | Bolt |
| 9 | Machined spacer (2 off) |
The high silicon molybdenum cast iron exhaust manifolds are unique for each cylinder bank. Each exhaust manifold installation includes a layered metal gasket and heat shields. Spacers on the securing bolts allow the manifolds to expand and contract with changes of temperature while maintaining the clamping loads.
