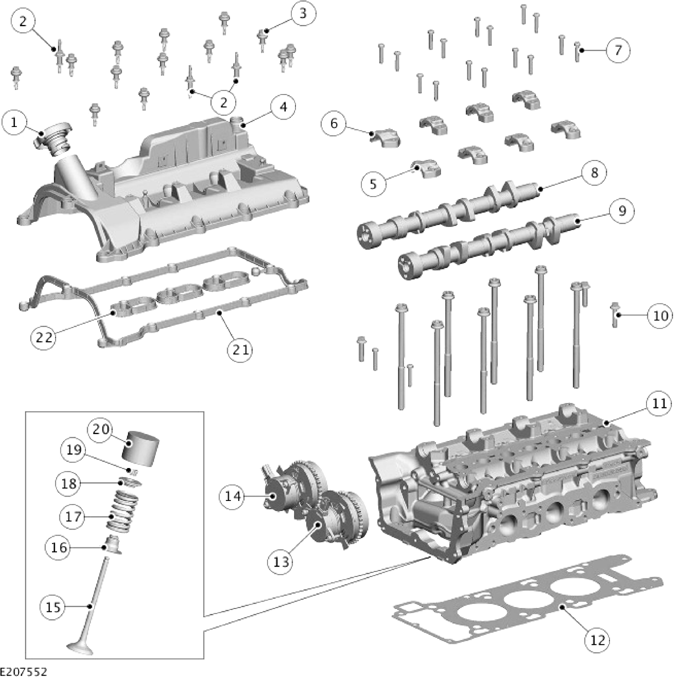

Cylinder Head Components
WARNING: This page is about a different variant/trim than selected.
NOTE:
- Bank 2 cylinder head is shown, Bank 1 cylinder head is similar.
- Some variations in the illustration may occur, but the essential information is always correct.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Oil filler cap assembly |
| 2 | Stud, nut, grommet and sleeve (3 off in Bank 2, 4 off in Bank 1) |
| 3 | Bolt, grommet and sleeve (15 off) |
| 4 | Camshaft cover |
| 5 | Exhaust camshaft caps (4 off) |
| 6 | Inlet camshaft caps (4 off) |
| 7 | Camshaft cap bolts (16 off) |
| 8 | Inlet camshaft |
| 9 | Exhaust camshaft |
| 10 | Cylinder head bolts (13 off) |
| 11 | Cylinder head |
| 12 | Cylinder head gasket |
| 13 | Variable Camshaft Timing (VCT) actuator assembly - Exhaust |
| 14 | VCT actuator assembly - Inlet |
| 15 | Valve - 6 inlet, 6 exhaust (12 off) |
| 16 | Valve spring seat and stem seal (12 off) |
| 17 | Valve spring (12 off) |
| 18 | Valve spring retainer (12 off) |
| 19 | Valve spring collet (24 off) |
| 20 | Valve tappet (12 off) |
| 21 | Camshaft cover gasket |
| 22 | Camshaft cover/spark plug/fuel injector gasket (3 off) |
