Camshaft Covers

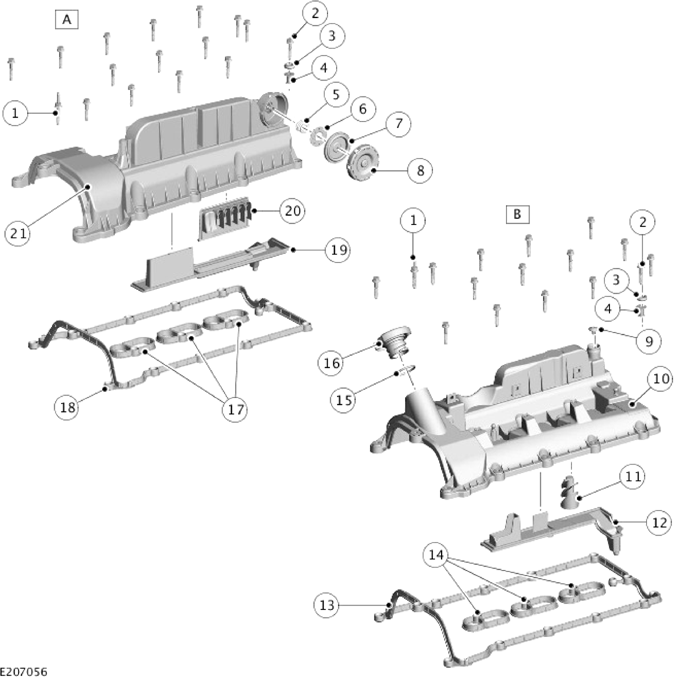

| ITEM | DESCRIPTION |
|---|---|
| A | Camshaft cover - Bank 1 |
| B | Camshaft cover - Bank 2 |
| 1 | Stud, nut, grommet and sleeve (3 off in Bank 2, 4 off in Bank 1) |
| 2 | Bolt - 15 off per camshaft cover |
| 3 | Grommet - 15 off per camshaft cover |
| 4 | Spacer - 15 off per cover |
| 5 | Positive crankcase ventilation spring |
| 6 | Positive crankcase ventilation inlet |
| 7 | Positive crankcase ventilation valve |
| 8 | Positive crankcase ventilation valve cover |
| 9 | Two-way valve |
| 10 | Camshaft cover - Bank 2 |
| 11 | Spiral oil separator |
| 12 | Baffle plate |
| 13 | Camshaft cover gasket |
| 14 | Camshaft cover spark plug/injector gasket (3 off) |
| 15 | O-ring seal |
| 16 | Oil filler cap assembly |
| 17 | Camshaft cover/spark plug/fuel injector gasket (3 off) |
| 18 | Camshaft cover gasket |
| 19 | Baffle plate |
| 20 | Omega flap plate |
| 21 | Camshaft cover - Bank 1 |
Each camshaft cover is secured to the cylinder head with 15 bolts, a stud and a nut. The grommet seals the holes in the cover and the sleeve controls the compression of the grommet.
Threaded inserts are fitted to each cover to allow for the attachment of the ignition coils. A plastic cover is fitted over the ignition coils and is secured with snaplock studs.
Each camshaft cover is fitted with a breather. The left side cover has a baffle plate which collects oil vapor and allows it drain back into the oil pan via the cylinder block. The left side breather provides for engine full load operation and vents cylinder block emissions into the left side air filter outlet. The right side cover is fitted with an omega plate and the positive crankcase ventilation valve. The right side breather provides for engine part load operation and vents cylinder block emissions into the throttle which is integral with the supercharger.
A groove in the outer edge of each cover provides the location for the re-useable camshaft cover gasket. Three separate gaskets, located in the center of the camshaft cover, prevent oil leaking into the area around the fuel injectors, spark plugs and ignition coils.
