Hood Service Position (G2408496): Adjustment

WARNING: This page is about a different car, the 2021 Land Rover Range Rover Sport and 2020 Land Rover Range Rover Sport. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
  • This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
  • This procedure contains illustrations showing certain components removed to provide extra clarity.
  1. Open the hood.
  2. NOTE: This step requires the aid of another technician.

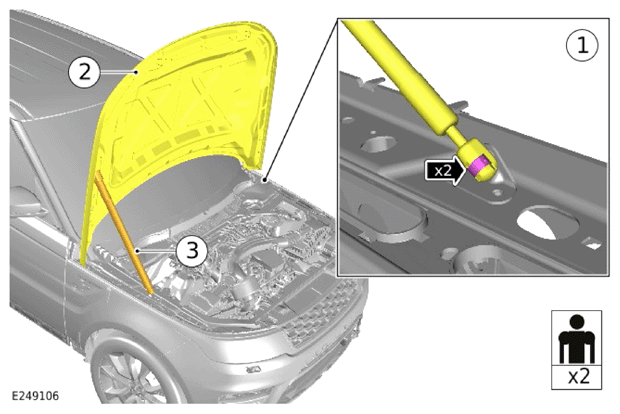

    G14072089Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    1. Release the hood gas struts both sides.
    2. Position the Hood into the service position.
    3. Use a suitable telescopic support to secure the hood in the service position.

      General Equipment:  Telescopic Support
