Ignition Switch

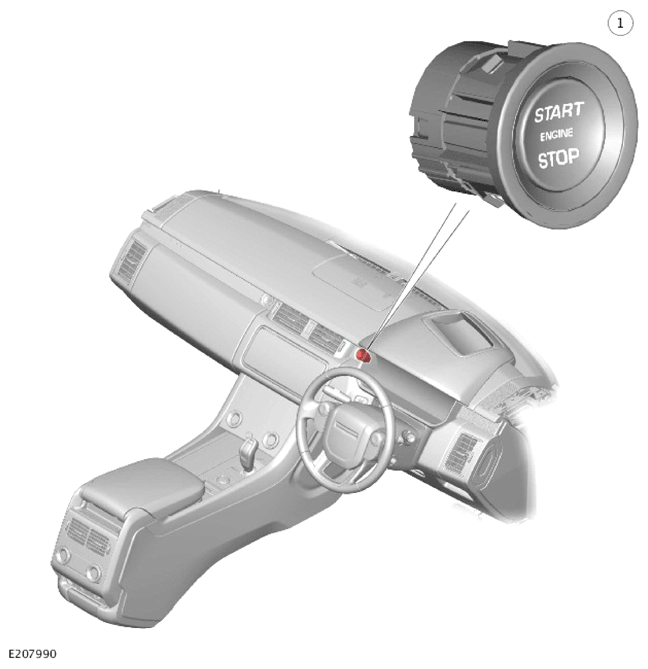

G14060145Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Item Description
1 Ignition switch

The ignition switch is installed in the instrument panel and is hardwired to the Body Control Module/Gateway Module (BCM/GWM). When the switch is pressed 2 signal lines from the BCM/GWM are connected to ground.
