Auto Stop/Start Soft Key

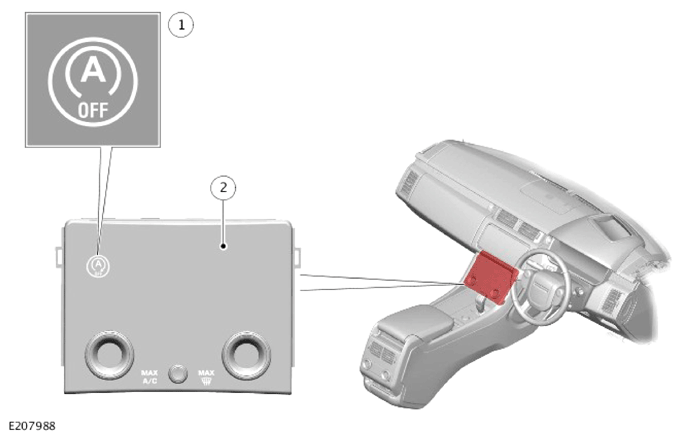

G14060147Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Item Description
1 Auto stop/start soft key
2 Interactive Control Display Module (ICDM)

The auto stop/start soft key can be accessed from the 'Vehicle' menu on the Interactive Control Display Module (ICDM). The ICDM is located in the instrument panel. The driver can enable or disable the auto stop/start system using the soft key. The request is transmitted from the ICDM to the Body Control Module/Gateway Module (BCM/GWM) via the High Speed (HS) Controller Area Network (CAN) comfort systems bus.
