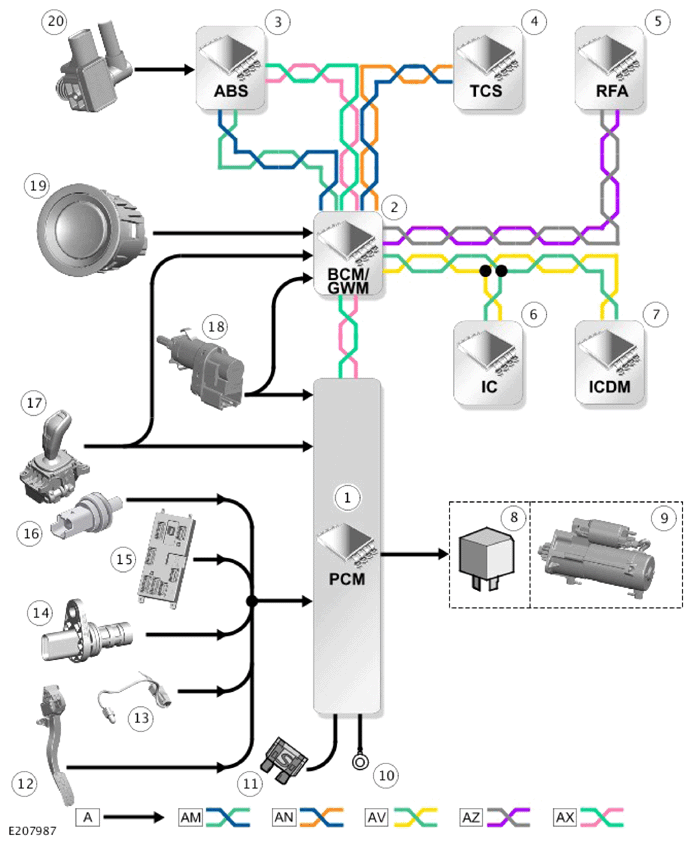

Control Diagram
A = Hardwire: AM = High Speed (HS) Controller Area Network (CAN) chassis systems bus: AN = HS CAN powertrain systems bus: AV = HS CAN comfort systems bus: AZ = HS CAN Body systems bus: AX = FlexRay.
| Item | Description |
|---|---|
| 1 | Powertrain Control Module (PCM) |
| 2 | Body Control Module/Gateway Module (BCM/GWM) |
| 3 | Anti-lock Brake System (ABS) control module |
| 4 | Transmission Control Switch (TCS) |
| 5 | Remote Function Actuator (RFA) |
| 6 | Instrument Cluster (IC) |
| 7 | Interactive Control Display Module (ICDM) |
| 8 | Starter relay - Engine Junction Box 2 (EJB 2) |
| 9 | Starter motor |
| 10 | Ground |
| 11 | Power supply |
| 12 | Accelerator Pedal Position (APP) sensor |
| 13 | Ambient Air Temperature (AAT) sensor |
| 14 | Crankshaft Position (CKP) sensor |
| 15 | Crank signal - BCM/GWM |
| 16 | Engine Coolant Temperature (ECT) sensor |
| 17 | Park/neutral signal - TCS |
