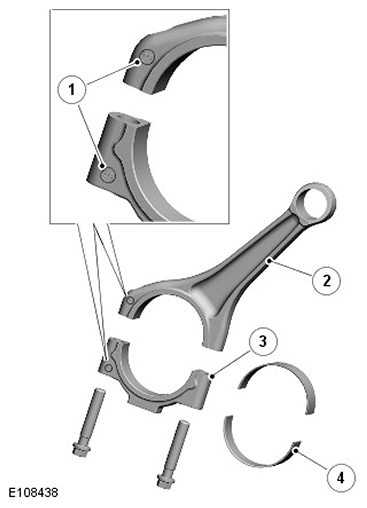

Cap Alignment With The Connecting Rod
 Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
|
| Item |
Description |
| 1 |
Alignment marks |
| 2 |
Connecting rod |
| 3 |
Connecting rod cap |
| 4 |
Large end shell bearings |
The correct alignment of the cap with the connecting rod is indicated by marks on adjacent faces of the components.
