Short Engine Assembly Renew (G2443972): Part(s)

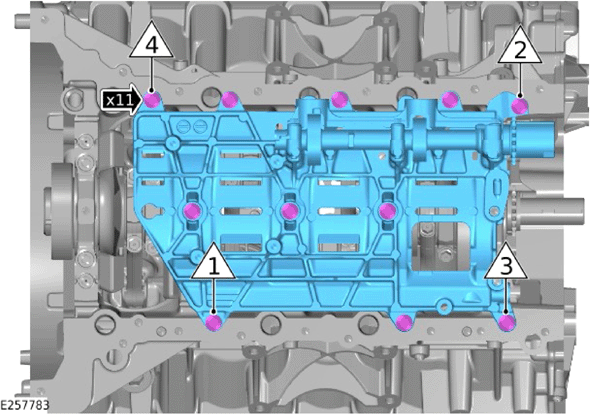

Fig 1: Windage Tray Bolts Tightening Sequence

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

• Install the windage tray.
• Install and tighten the 4 bolts in the illustrated sequence.

  Torque  : 25 Nm

• Install and tighten the remaining 7 bolts.

  Torque  : 25 Nm

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

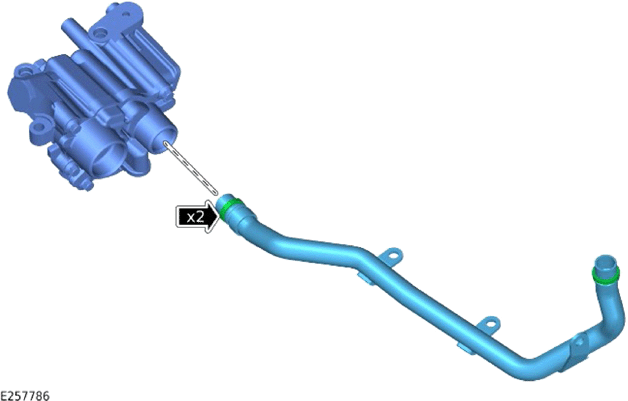

• Install 2 new O-ring seals.

  Renew Part: Oil pump outlet tube O-ring seal(s)  Quantity: 2  .

• Connect the oil pump outlet pipe to the oil pump.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

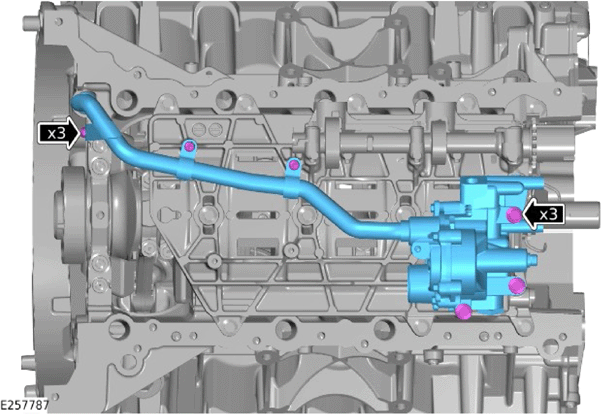

• Install the oil pump.
• Install and tighten the 3 oil pump mounting bolts.

  Torque  : 25 Nm

• Install and tighten the 3 oil pump outlet pipe bolts.

  Torque  : 11.5 Nm

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

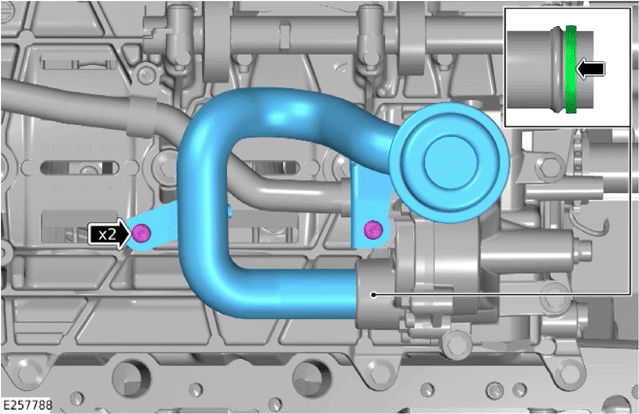

• Install a new O-ring seal.

  Renew Part: Oil pump inlet tube O-ring seal(s)  Quantity: 1  .

• Install the oil pump inlet pipe.
• Install and tighten the 2 bolts.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

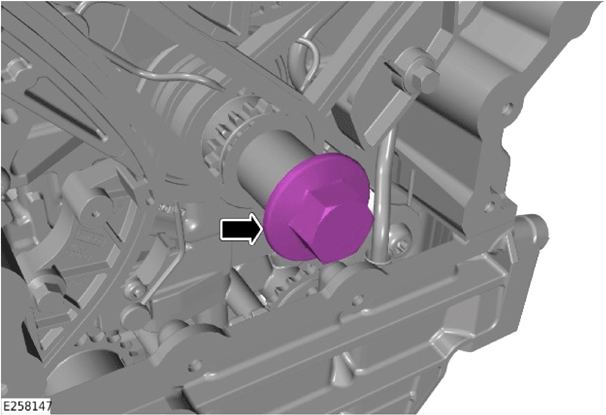

• Install a new crankshaft pulley bolt.

  Renew Part: Crankshaft pulley bolts  Quantity: 1  .

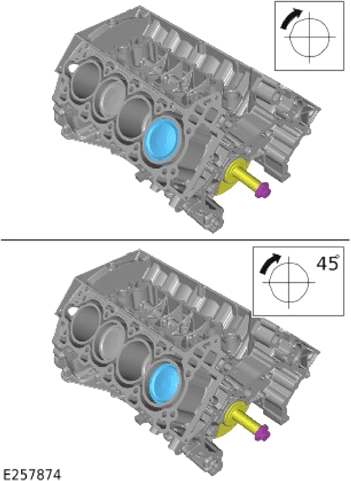

• Rotate the crankshaft in a clockwise direction until TDC on cylinder 1 as illustrated.
• Rotate the crankshaft in a clockwise direction by 45°.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

• Install a new friction washer.

  Renew Part: Crankshaft sprocket friction washer  Quantity: 1  .

• Install the crankshaft sprocket.
• Install a new friction washer.

  Renew Part: Crankshaft sprocket friction washer  Quantity: 1  .

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

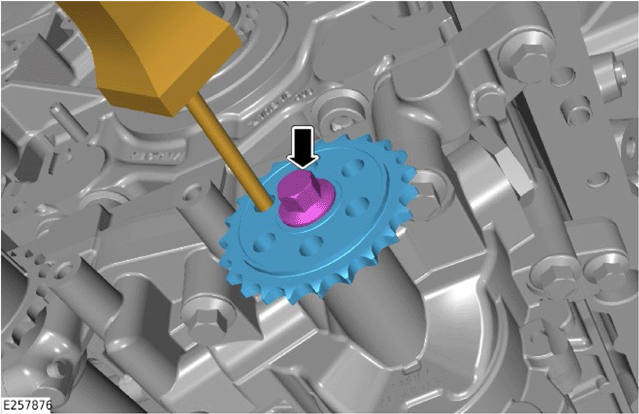

• Install the oil pump drive sprocket.
• Install, but do not fully tighten a new bolt.

  Renew Part: Oil pump gear bolt  Quantity: 1  .

• Use a suitable tool to hold the oil pump drive sprocket.
• Tighten the bolt.

  Torque  : 21 Nm

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

• Install a new lower timing chain tensioner.

  Renew Part: Lower timing chain tensioner  Quantity: 1  .

• Install and tighten the bolt.

  Torque  : 21 Nm

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

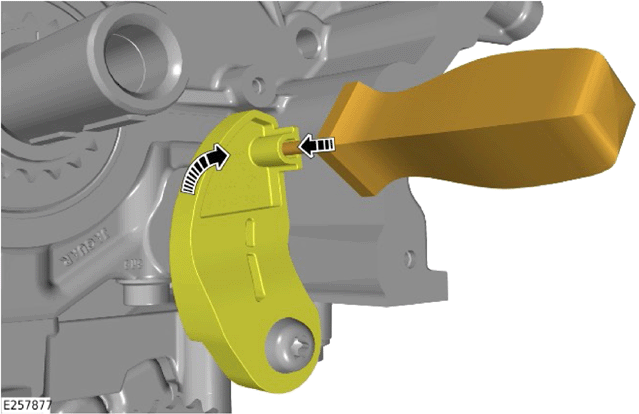

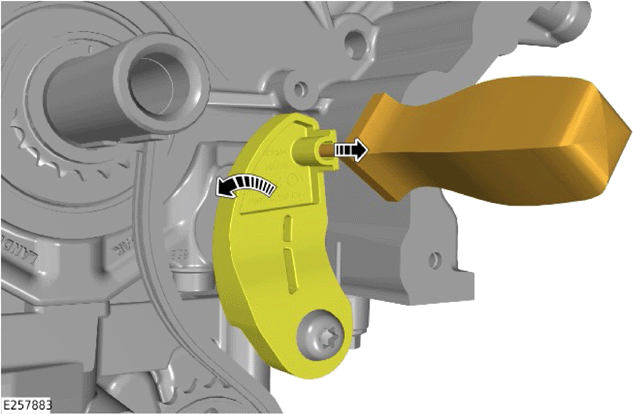

• Reposition the lower timing chain tensioner as illustrated.
• Install a suitable tool to hold the lower timing chain tensioner.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

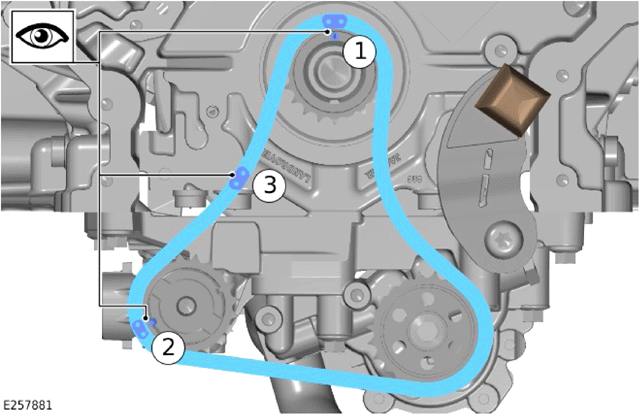

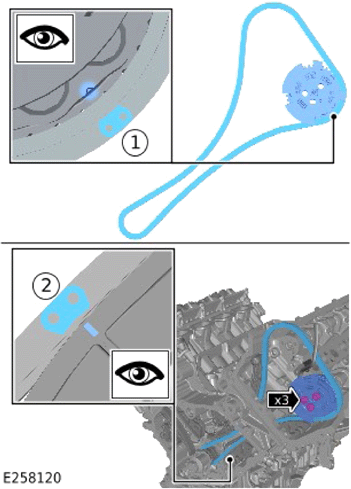

• Install a new lower timing chain.

  Renew Part: Lower timing chain  Quantity: 1  .

• Make sure the orange link (2) aligns with the timing mark on the High Pressure (HP) fuel pump camshaft.
• Make sure the blue link (1) aligns with the timing mark on the crankshaft sprocket.
• Make sure the blue link (3) is in the middle point of the blue link (1) and the orange link (2).

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

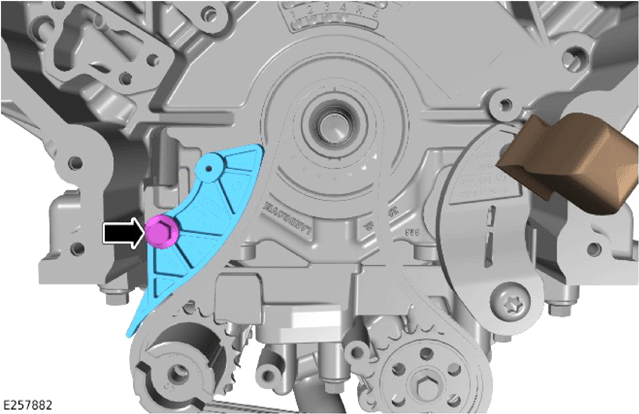

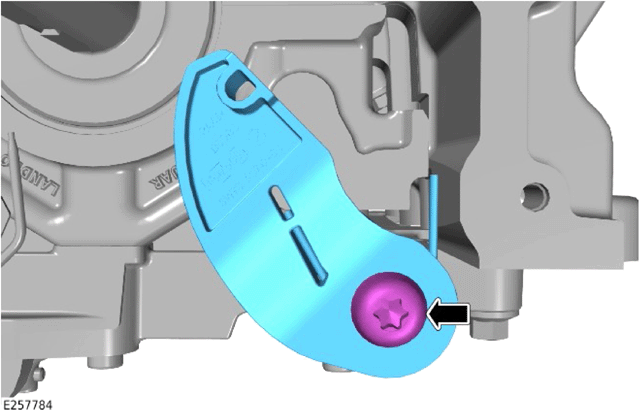

• Install a new lower timing chain guide.

  Renew Part: Lower timing chain guide  Quantity: 1  .

• Install and tighten the bolt.

  Torque  : 11.5 Nm

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

• Remove the holding tool.
• Slowly release the lower timing chain tensioner.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

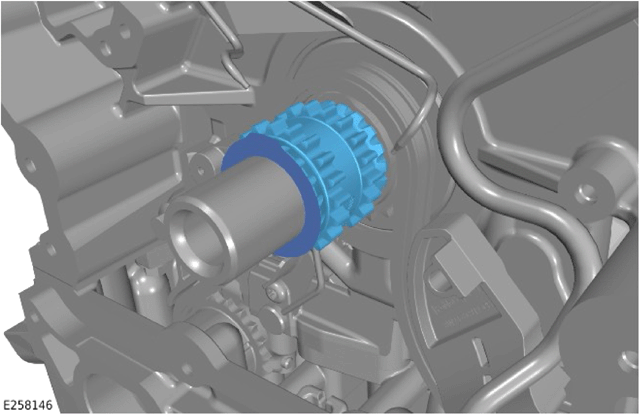

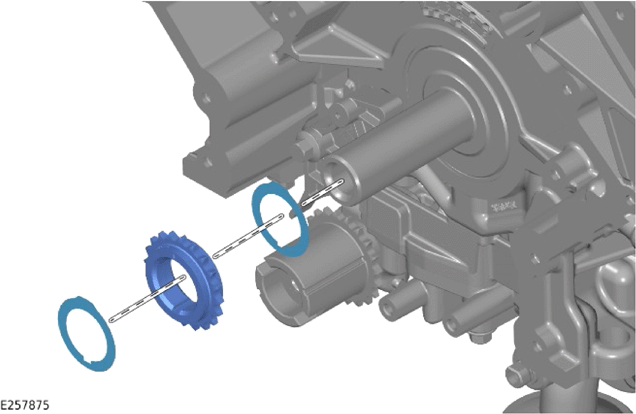

• Install the crankshaft sprocket.
• Install a new friction washer.

  Renew Part: Crankshaft sprocket friction washer  Quantity: 1  .

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

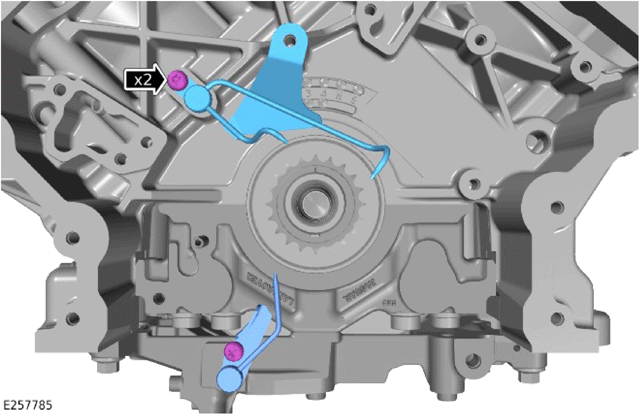

• Install the 2 timing chain lubrication pipes.
• Install and tighten the 2 bolts.

  Torque  : 11 Nm

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

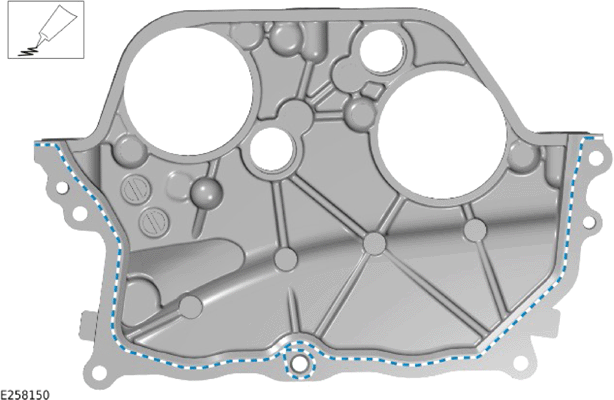

Apply RTV sealant WSE-M4G323-A6 (Loctite 5901G or Loctite 59000) to the areas shown.

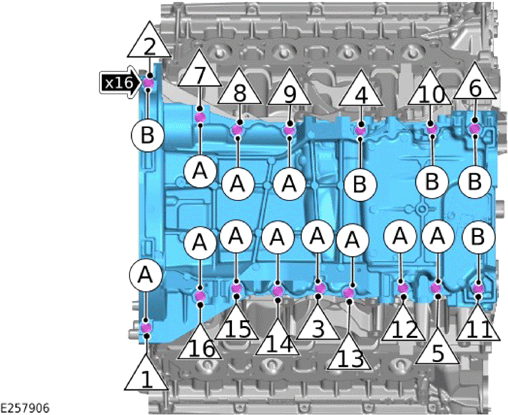

Fig 2: Oil Pan Bolts Tightening Sequence

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

• Install the oil pan.
• Install and tighten 16 new bolts in the illustrated sequence.

  Renew Part: Oil pan bolts M8 x 35  Quantity: 11  .

  Renew Part: Oil pan bolts M8 x 80  Quantity: 5  .

  Torque  : 25 Nm

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

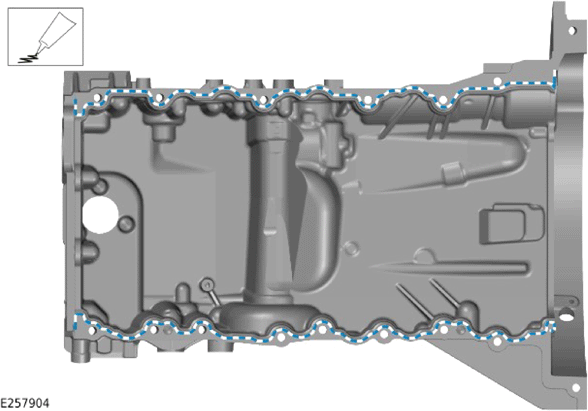

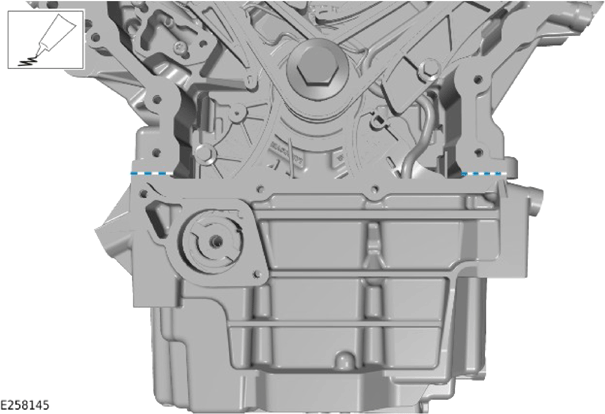

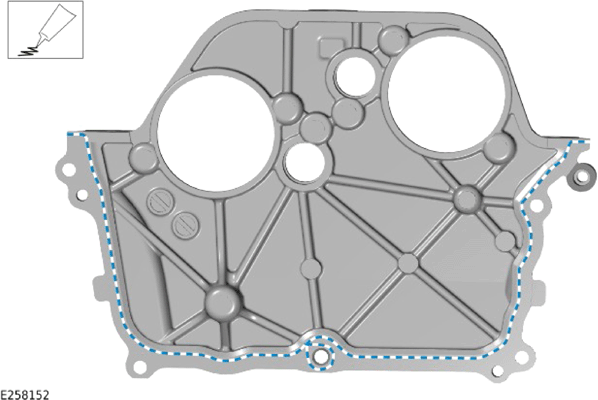

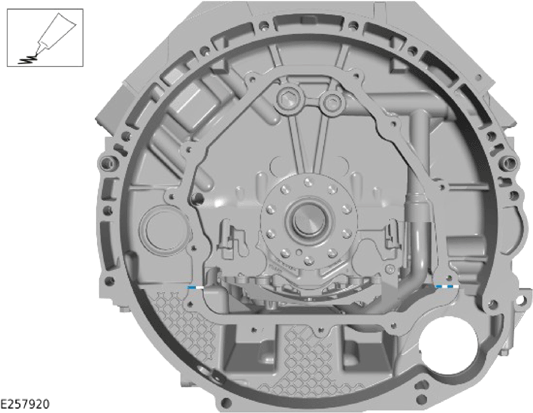

Apply RTV sealant (Loctite 5901G) to the areas shown.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

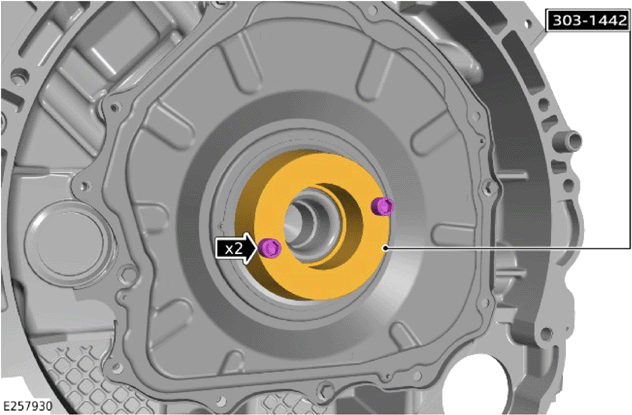

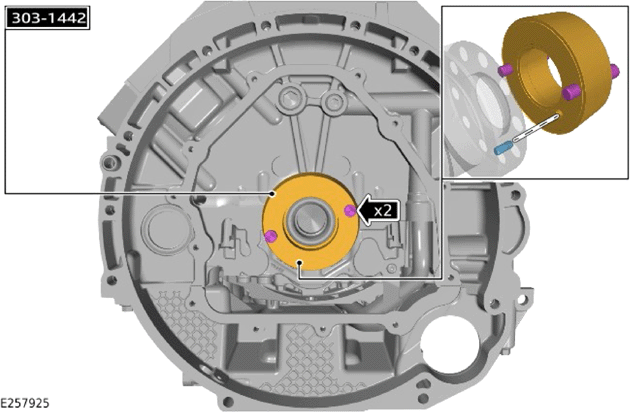

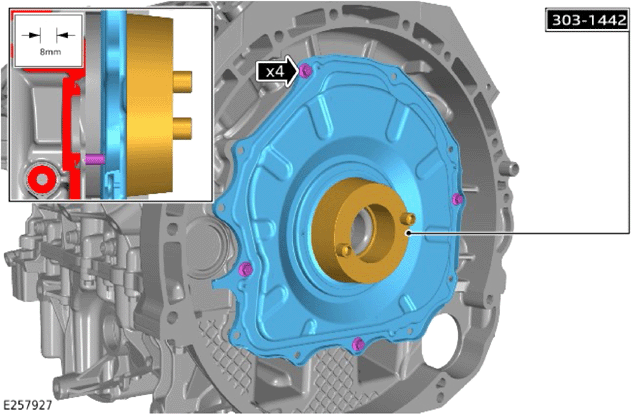

• Install the special tool.

  Special Tool(s): 303-1442

• Install and tighten the 2 bolts.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

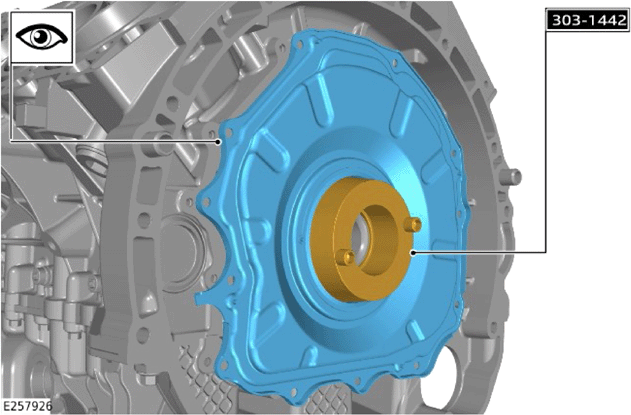

Install a new engine rear cover with a space of 8 mm between the engine rear cover and the mating face.

Renew Part: Crankshaft rear cover  Quantity: 1  .

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

• Install, but do not fully tighten the 4 bolts.
• Make sure there is a space of 8 mm between the engine rear cover and the mating face.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

• Remove the 2 bolts.
• Remove the special tool.

  Special Tool(s): 303-1442

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

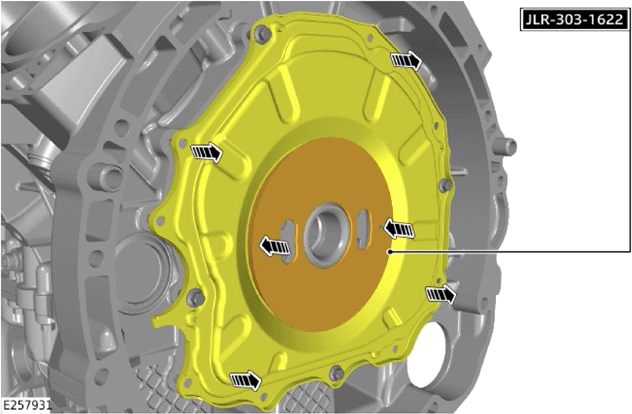

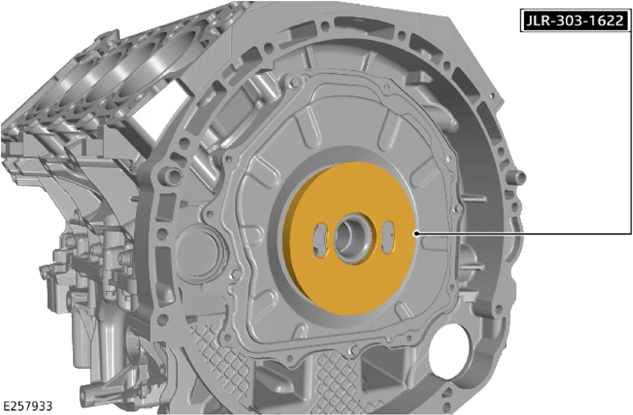

• Apply pressure to the engine rear cover and install the special tool.

  Special Tool(s): JLR-303-1622

• Make sure there is a space of 8 mm between the engine rear cover and the mating face.

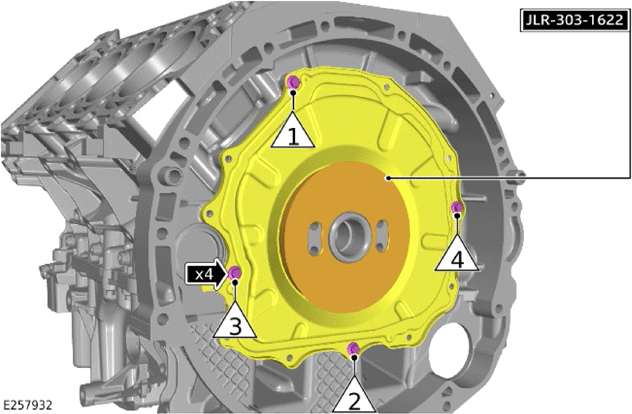

Fig 3: Engine Rear Cover Tightening Sequence

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

• Use the special tool to fully install the engine rear cover.

  Special Tool(s): JLR-303-1622

• Tighten the 4 bolts in the illustrated sequence.

  Torque  : 11.5 Nm

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the special tool.

Special Tool(s): JLR-303-1622

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

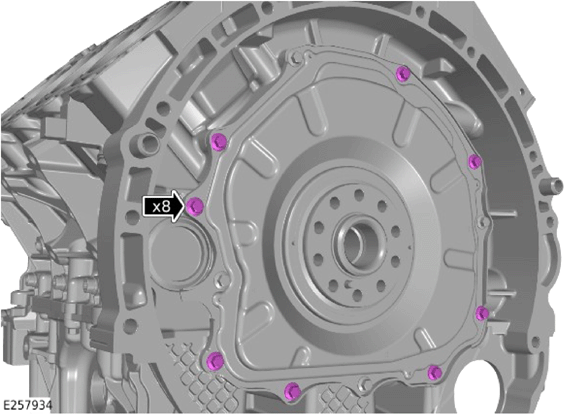

Install and tighten the 8 bolts.

Torque  : 11.5 Nm

Refer to: CYLINDER HEAD DISTORTION - INGENIUM I4 2.0L PETROL/TDV6 3.0L DIESEL/TDV8 4.4L DIESEL/V6 S/C 3.0L PETROL/V8 S/C 5.0L PETROL

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

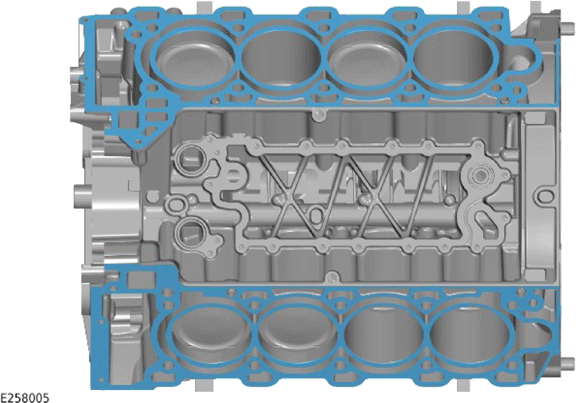

Make sure that the mating faces are clean and free of foreign material.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Install a new right cylinder head gasket.

Renew Part: Cylinder head gasket  Quantity: 1  .

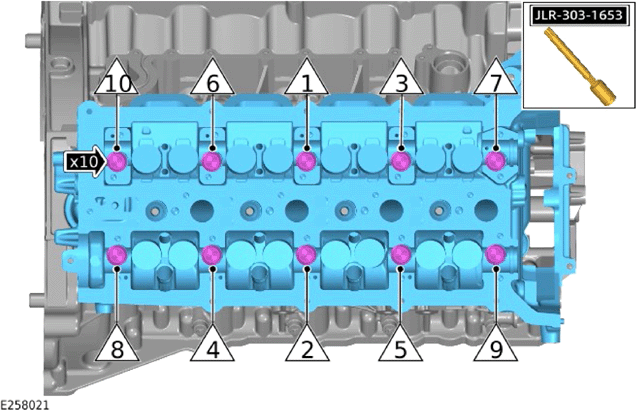

Fig 4: Cylinder Head Bolts Tightening Sequence

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

• Install the right cylinder head.
• Use the special tool to install and tighten 10 new cylinder head bolts in the illustrated sequence.

  Special Tool(s): JLR-303-1653

  Renew Part: Cylinder head bolts  Quantity: 10  .

  Torque

  Stage 1: 20 Nm

  Stage 2: 35 Nm

• Loosen each bolt and then tighten each bolt in the illustrated sequence.

  Torque  : 35 Nm

• Tighten the 10 bolts in the illustrated sequence.

  Torque  : 90°

• Tighten the 10 bolts in the illustrated sequence.

  Torque  : 120°

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

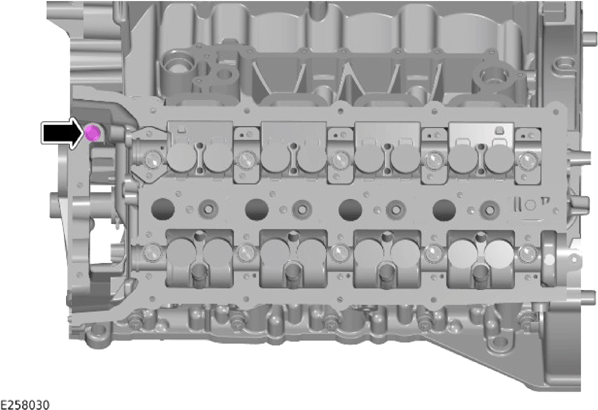

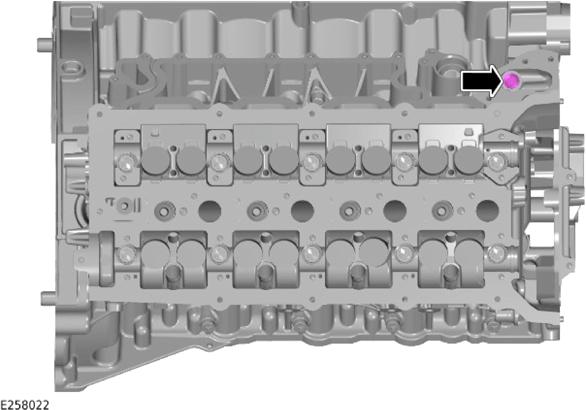

Install and tighten a new bolt.

Renew Part: Cylinder head bolts  Quantity: 1  .

Torque  : 25 Nm

Fig 5: Cylinder Head Bolts Tightening Sequence

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

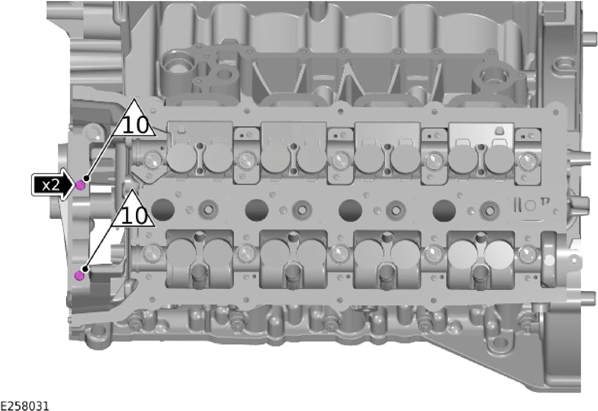

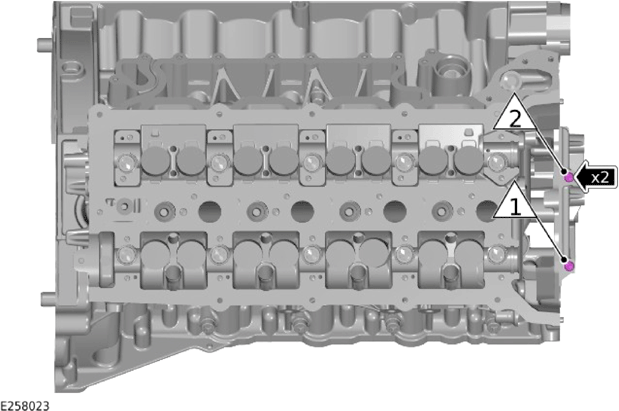

Install and tighten 2 new cylinder head bolts in the illustrated sequence.

Renew Part: Cylinder head bolts  Quantity: 2  .

Torque  : 11.5 Nm

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Install a new left cylinder head gasket.

Renew Part: Cylinder head gasket  Quantity: 1  .

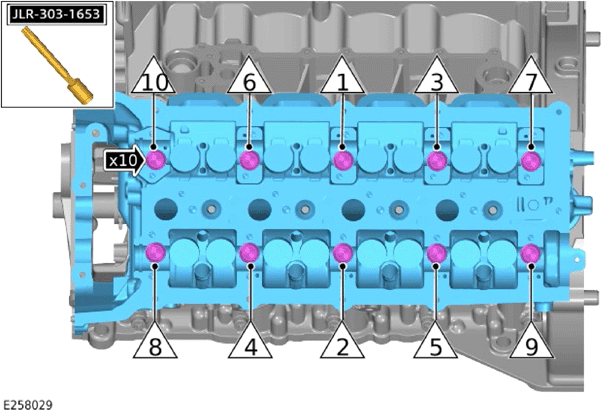

Fig 6: Left Cylinder Head Bolts Tightening Sequence

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

• Install the left cylinder head.
• Use the special tool to install and tighten 10 new cylinder head bolts in the illustrated sequence.

  Special Tool(s): JLR-303-1653

  Renew Part: Cylinder head bolts  Quantity: 10  .

  Torque

  Stage 1: 20 Nm

  Stage 2: 35 Nm

• Loosen each bolt and then tighten each bolt in the illustrated sequence.

  Torque  : 35 Nm

• Tighten the 10 bolts in the illustrated sequence.

  Torque  : 90°

• Tighten the 10 bolts in the illustrated sequence.

  Torque  : 120°

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Install and tighten a new bolt.

Renew Part: Cylinder head bolts  Quantity: 1  .

Torque  : 25 Nm

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Install and tighten 2 new cylinder head bolts in the illustrated sequence.

Renew Part: Cylinder head bolts  Quantity: 2  .

Torque  : 11.5 Nm

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

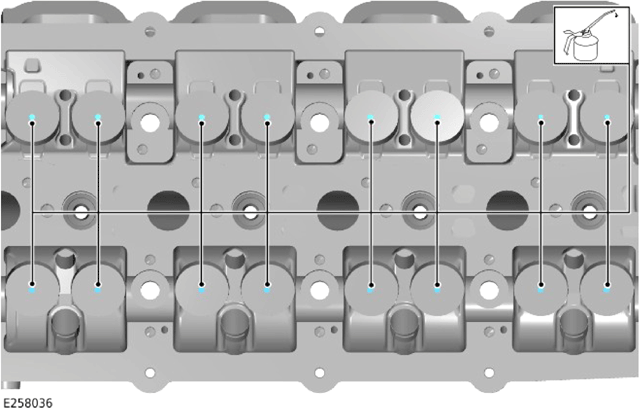

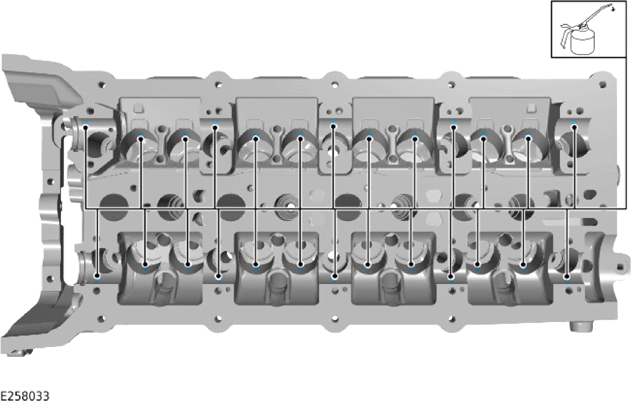

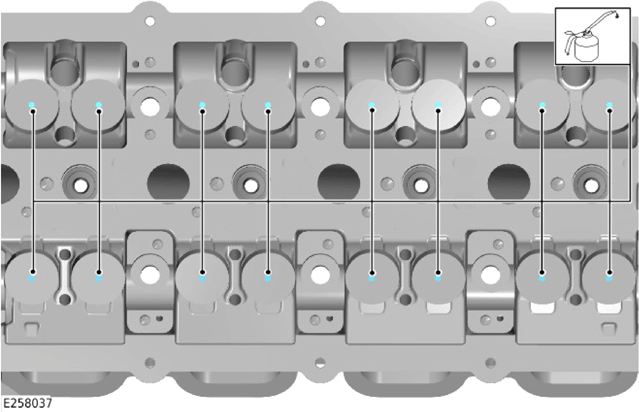

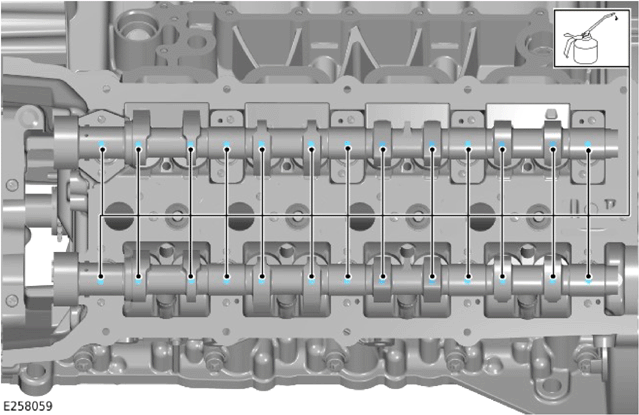

Lubricate each of the areas shown with a drop of clean engine oil.

Refer to: SPECIFICATIONS

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

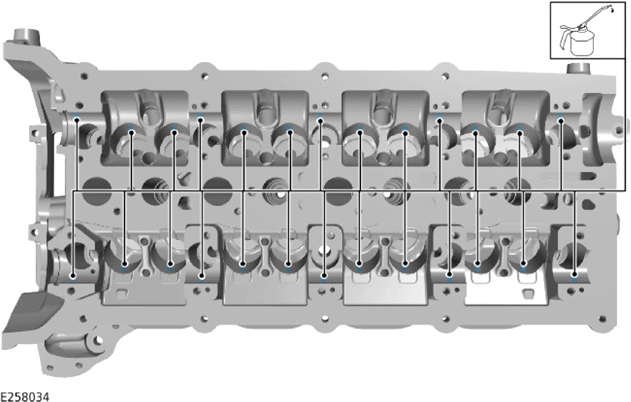

Lubricate each of the areas shown with a drop of clean engine oil.

Refer to: SPECIFICATIONS

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

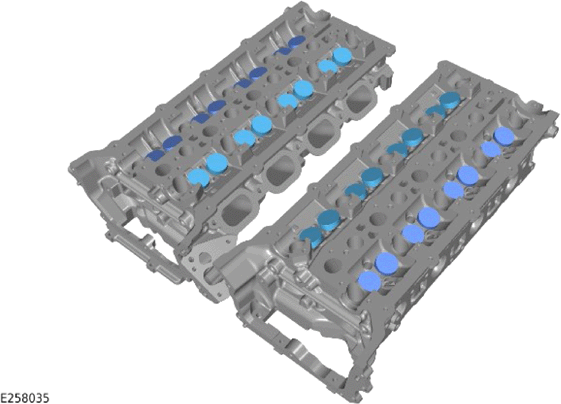

Install the 32 valve tappets to their noted removal position.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Lubricate each of the areas shown with a drop of clean engine oil.

Refer to: SPECIFICATIONS

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Lubricate each of the areas shown with a drop of clean engine oil.

Refer to: SPECIFICATIONS

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

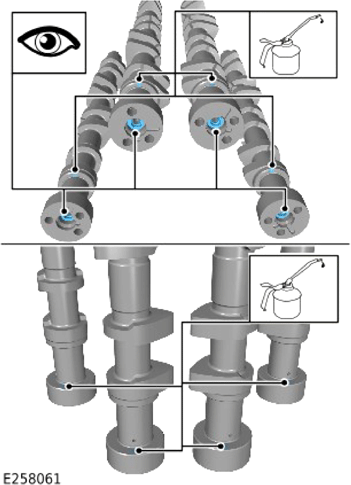

• Make sure a filter is installed in each camshaft prior to installing the camshafts.
• Lubricate each of the areas shown with a drop of clean engine oil.

  Refer to: SPECIFICATIONS

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Install the 2 right camshafts to their noted removal position.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Install the 2 left camshafts to their noted removal position.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

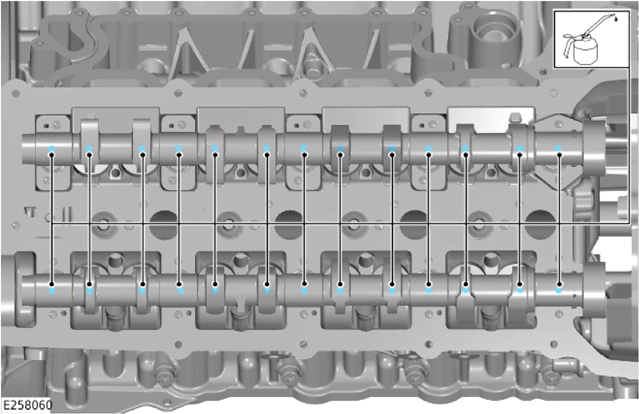

Lubricate each of the areas shown with a drop of clean engine oil.

Refer to: SPECIFICATIONS

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Lubricate each of the areas shown with a drop of clean engine oil.

Refer to: SPECIFICATIONS

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

• Install the 10 camshaft bearing caps to their noted removal position.
• Working from the front of the engine to the rear, install and tighten the 20 bolts.

  Torque  : 11 Nm

• Make sure each camshaft can rotate freely.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

• Install the 10 camshaft bearing caps to their noted removal position.
• Working from the front of the engine to the rear, install and tighten the 20 bolts.

  Torque  : 11 Nm

• Make sure each camshaft can rotate freely.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Install and tighten the 2 bolts.

Torque  : 11.5 Nm

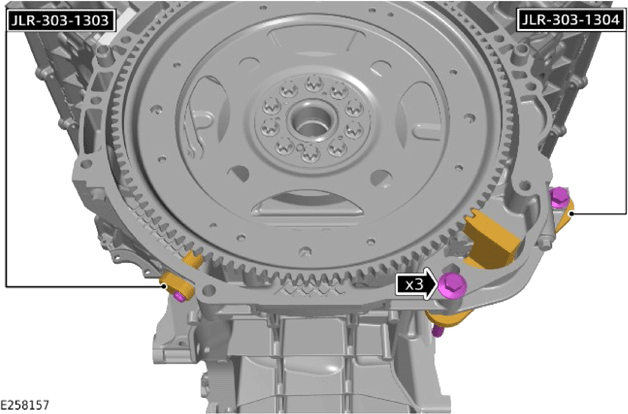

Fig 7: Drive Plate Bolt Tightening Sequence

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

• Install the drive plate.
• Install, but do not fully tighten 10 new bolts.

  Renew Part: Drive plate bolts  Quantity: 10  .

• Install the special tools as illustrated.

  Special Tool(s): JLR-303-1303  , JLR-303-1304

• Tighten the 10 bolts in the illustrated sequence.

  Torque

  Stage 1: 45 Nm

  Stage 2: 90°

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

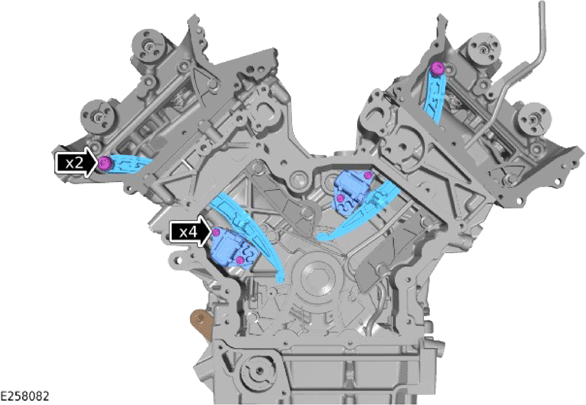

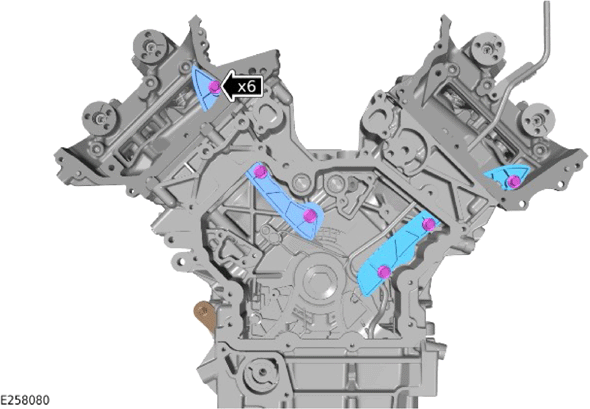

• Install a new upper right upper timing chain guide.

  Renew Part: Upper timing chain guide  Quantity: 1  .

• Install and tighten the 3 bolts.

  Torque  : 11.5 Nm

• Install a new lower left upper timing chain guide.

  Renew Part: Upper timing chain guide  Quantity: 1  .

• Install and tighten the 3 bolts.

  Torque  : 11.5 Nm

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

• Install a new lower right upper timing chain guide.

  Renew Part: Upper timing chain guide  Quantity: 1  .

• Install and tighten the bolt.

  Torque  : 25 Nm

• Install a new upper left upper timing chain guide.

  Renew Part: Upper timing chain guide  Quantity: 1  .

• Install and tighten the bolt.

  Torque  : 25 Nm

• Install a new right upper timing chain tensioner.

  Renew Part: Upper timing chain tensioner  Quantity: 1  .

• Install and tighten the 2 bolts.

  Torque  : 11.5 Nm

• Install a new left upper timing chain tensioner.

  Renew Part: Upper timing chain tensioner  Quantity: 1  .

• Install and tighten the 2 bolts.

  Torque  : 11.5 Nm

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

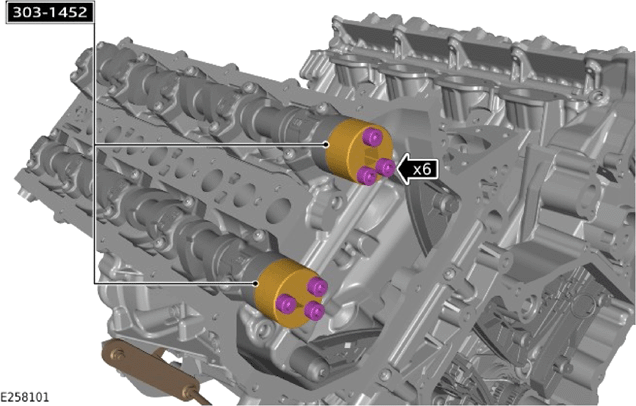

• Install the special tools as illustrated.

  Special Tool(s): 303-1452

• Install and tighten the 6 bolts.

  Torque  : 10 Nm

• Repeat this step for the other side.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

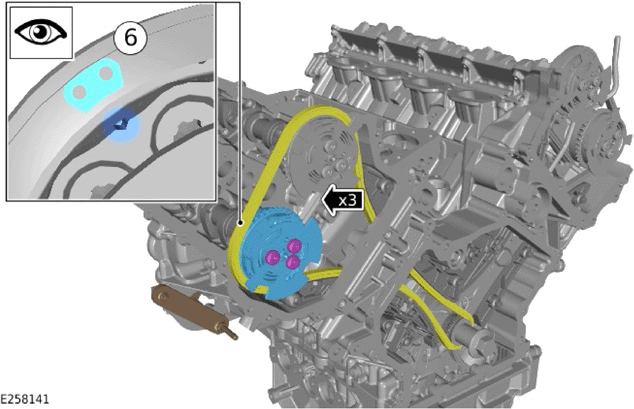

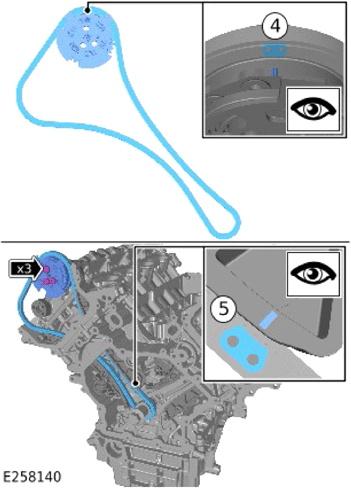

Make sure all the camshafts are oriented as illustrated.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

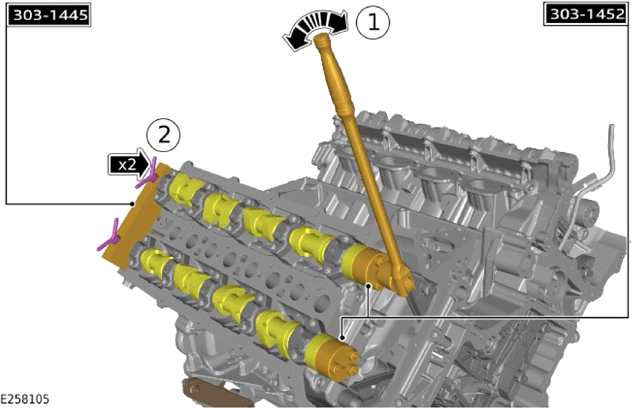

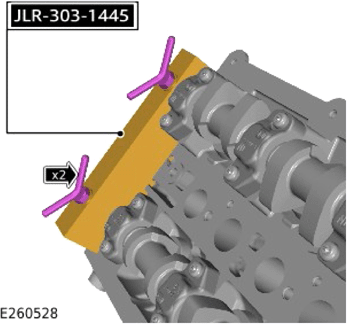

• Install the special tool as illustrated.

  Special Tool(s): 303-1445

• Use a suitable tool to carefully rock the camshaft clockwise then counter clockwise. Turn the special tool locking nuts until there is no movement left in the camshaft.
• Repeat this step for the other camshafts.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

• Remove the 6 bolts.
• Remove the special tools.

  Special Tool(s): 303-1452

• Repeat this step for the other side.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

• Install a new left upper timing chain to the left exhaust Variable Camshaft Timing (VCT) actuator.

  Renew Part: Upper timing chain  Quantity: 1  .

• Make sure the yellow left upper timing chain link (1) aligns with the notch on the VCT  actuator.
• Install the left upper timing chain and the left exhaust VCT  actuator.
• Make sure the white left upper timing chain link (2) aligns with the timing mark on the lower left upper timing chain guide.
• Install, but do not fully tighten the 3 bolts.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

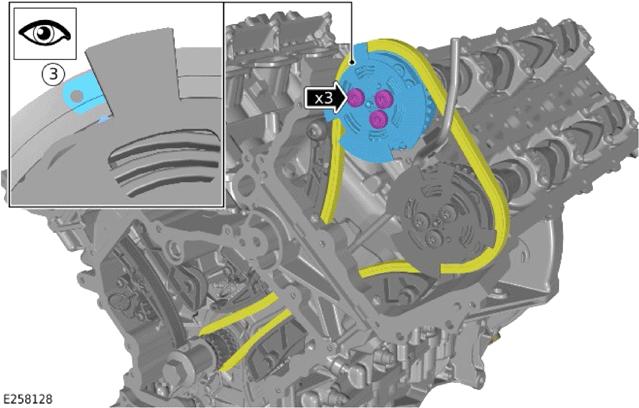

• Install the left intake VCT  actuator.
• Make sure the yellow left upper timing chain link (3) aligns with the timing mark on the left intake VCT  actuator.
• Install, but do not fully tighten the 3 bolts.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

• Install a new right upper timing chain to the right intake VCT  actuator.

  Renew Part: Upper timing chain  Quantity: 1  .

• Make sure the yellow right upper timing chain link (4) aligns with the timing mark on the VCT  actuator.
• Install the right upper timing chain and the right intake VCT  actuator.
• Install, but do not fully tighten the 3 bolts.
• Make sure the white right upper timing chain link (5) aligns with the timing mark on the upper right upper timing chain guide.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

• Install the right exhaust VCT  actuator.
• Make sure the yellow right upper timing chain link (6) aligns with the notch on the VCT  actuator.
• Install, but do not fully tighten the 3 bolts.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

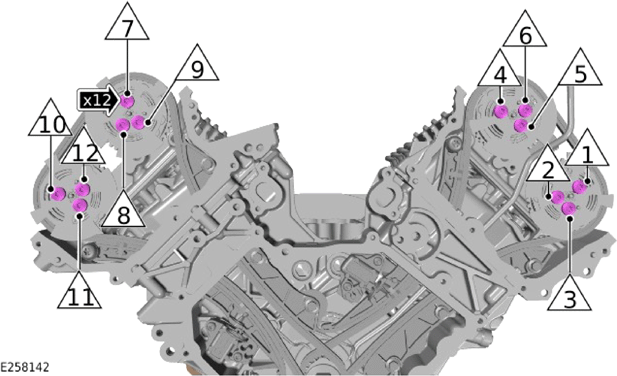

• Tighten the 12 bolts in the illustrated sequence.

  Torque  : 10 Nm

• Loosen the 12 bolts.

  Torque  : 2 turn(s)

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

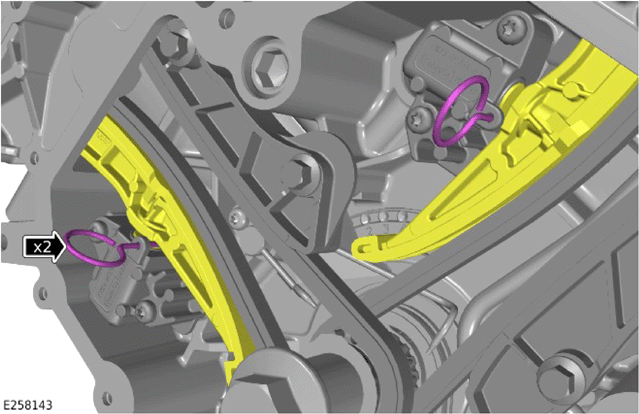

• Remove and discard the 2 locking pins.
• Slowly release the 2 upper timing chain guides.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Tighten the 12 bolts in the illustrated sequence.

Torque  : 10 Nm

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Tighten the 12 bolts in the illustrated sequence.

Torque  : 32 Nm

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

• Loosen the 2 bolts.
• Remove the special tool.

  Special Tool(s): 303-1445

• Repeat this step for the other side.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Apply RTV sealant (Loctite 5901G) in a 3 mm diameter to the areas shown.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove and discard the bolt.

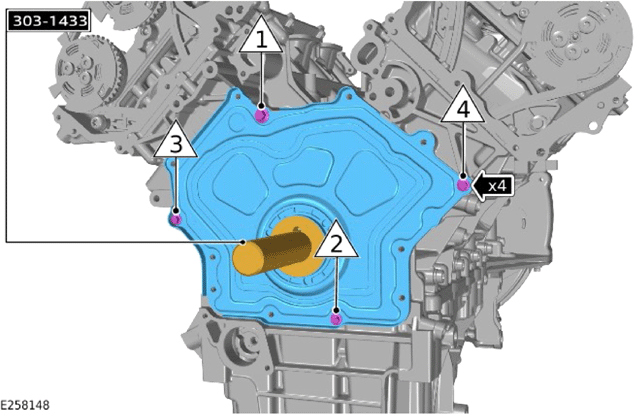

Fig 8: Engine Front Cover Tightening Sequence

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

• Use the special tool to install and align the engine front cover.

  Special Tool(s): 303-1433

• Install, but do not fully tighten the 4 bolts.
• Tighten the 4 bolts in the illustrated sequence.

  Torque

  M6: 11.5 Nm

  M8: 20 Nm

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

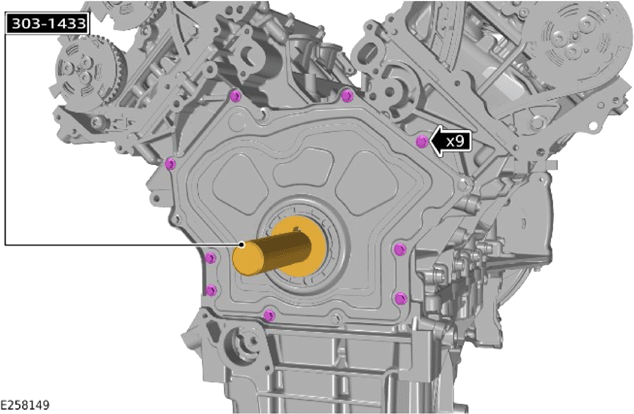

• Install and tighten the 9 bolts.

  Torque  : 11 Nm

• Remove the special tool.

  Special Tool(s): 303-1433

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Apply RTV sealant (Loctite 5901G) in a 3 mm diameter to the areas shown.

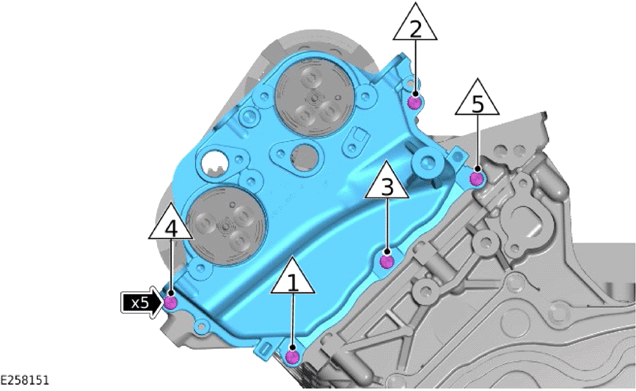

Fig 9: Upper Timing Cover Tightening Sequence

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

• Install the upper timing cover.
• Install and tighten the 5 bolts in the illustrated sequence.

  Torque  : 11.5 Nm

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Apply RTV sealant (Loctite 5901G) in a 3 mm diameter to the areas shown.

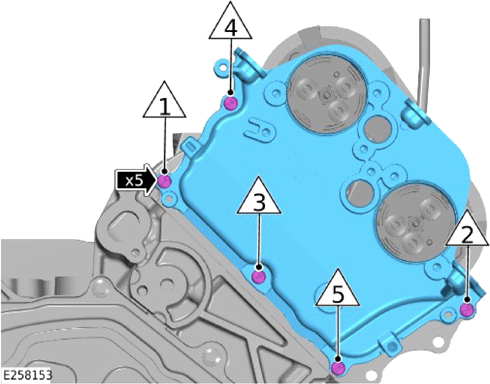

Fig 10: Upper Timing Cover Tightening Sequence

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

• Install the upper timing cover.
• Install and tighten the 5 bolts in the illustrated sequence.

  Torque  : 11.5 Nm

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

• Install a new right valve cover gasket.

  Renew Part: Valve cover gasket  Quantity: 1  .

• Install 4 new spark plug boss seals.

  Renew Part: Spark plug boss seals  Quantity: 1  .

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

• Install a new left valve cover gasket.

  Renew Part: Valve cover gasket  Quantity: 1  .

• Install 4 new spark plug boss seals.

  Renew Part: Spark plug boss seals  Quantity: 1  .

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

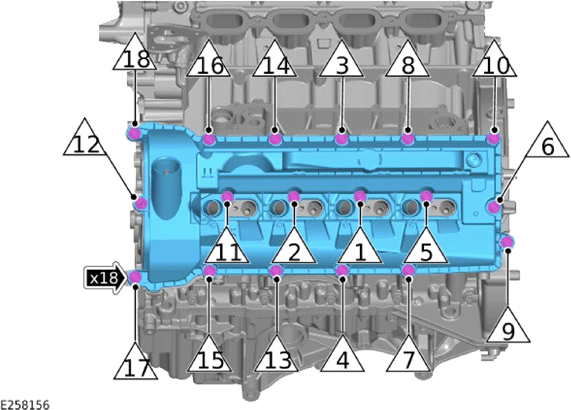

• Install the right valve cover.
• Tighten the 18 bolts.

  Torque  : 13 Nm

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

• Install the left valve cover.
• Tighten the 18 bolts.

  Torque  : 13 Nm

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Install the oil filler cap.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

• Remove the bolt.
• Remove the special tool.

  Special Tool(s): JLR-303-1303

• Remove the 2 bolts.
• Remove the special tool.

  Special Tool(s): JLR-303-1304
