Rear Silencer - Vehicles Without: SVR (G2155461): Removal

WARNING: Observe due care when working near a hot exhaust system.

NOTE: This procedure contains illustrations for right side components, left side components are similar.

Raise and support the vehicle on a suitable 2 post lift.
Refer to: JACKING AND LIFTING
CAUTION: Make sure that the exhaust system is supported with suitable retaining straps.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

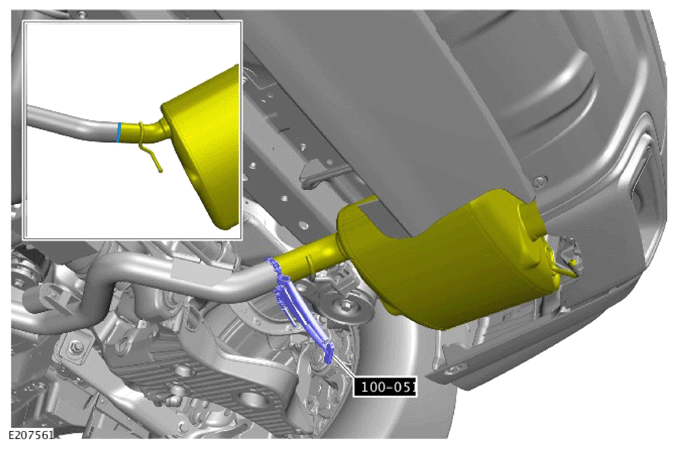

- Using the special tool, cut the exhaust pipe at the marked position.
  Special Tool(s): 100-051
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

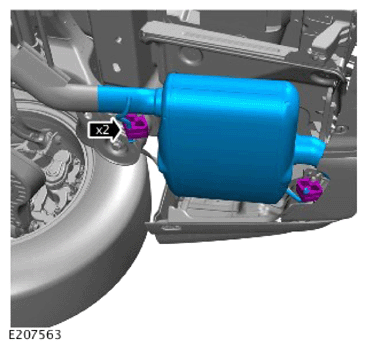

- Remove the rear silencer.
