Rear Silencer - Vehicles Without: SVR (G2155461): Installation

The following step(s) applies to:

All vehicles

1. WARNING: Make sure that any corrosion or dirt is removed from the mating surfaces.
   • Install the rear silencer and secure and tighten the exhaust clamp finger tight.

     Renew Part: Rear exhaust silencer clamp  Quantity: 1  .

The following step(s) applies to:

Vehicles with petrol engine

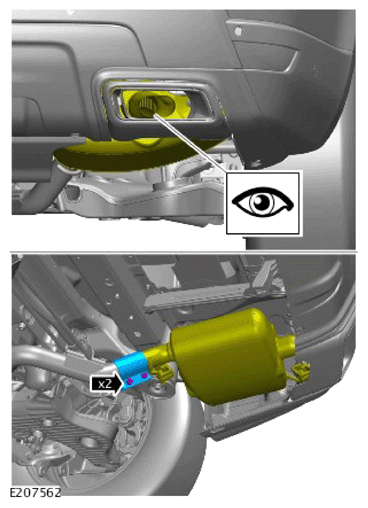

1. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

   • Position the rear silencer in the correct position as illustrated and fully tighten the exhaust clamp.

     Torque  : 40 Nm

The following step(s) applies to:

Vehicles with diesel engine

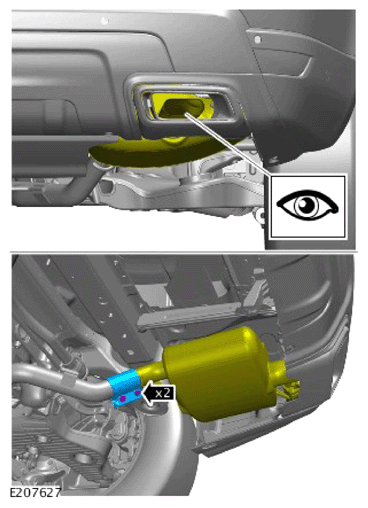

1. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

   • Position the rear silencer in the correct position as illustrated and fully tighten the exhaust clamp.

     Torque  : 40 Nm
