Rear Silencer - Vehicles With: SVR (G2164832): Removal

WARNING: Observe due care when working near a hot exhaust system.

Raise and support the vehicle on a suitable 2 post lift.
Refer to: JACKING AND LIFTING
With assistance, remove the rear bumper.
Refer to: REAR BUMPER
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

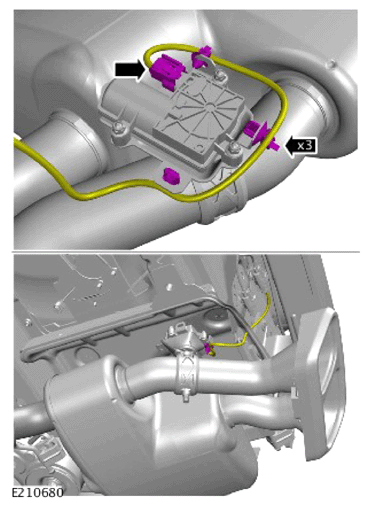

Disconnect the electrical connector.
CAUTION:
- Left side only.
- Make sure that the exhaust system is supported with suitable retaining straps.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

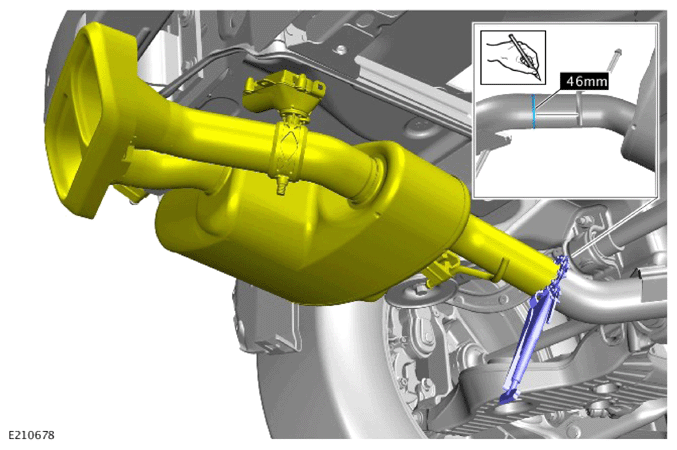

Using the special tool, cut the exhaust pipe at the marked position.

Special Tool(s): 100-051
CAUTION:
- Right side only.
- Make sure that the exhaust system is supported with suitable retaining straps.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

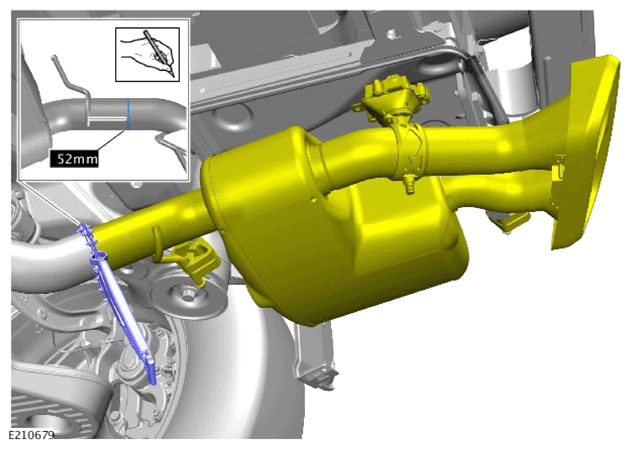

Using the special tool, cut the exhaust pipe at the marked position.

Special Tool(s): 100-051
NOTE: This procedure contains illustrations for right side components, left side components are similar.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

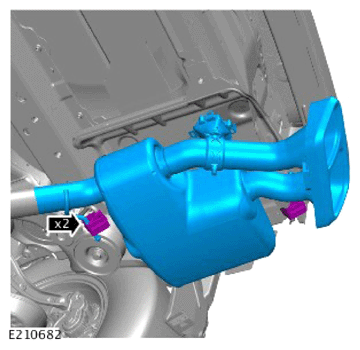

Remove the rear silencer.
