Rear Silencer - Vehicles With: SVR (G2164832): Installation

WARNING: Make sure that any corrosion or dirt is removed from the mating surfaces.

NOTE: Install but do not fully tighten the nuts.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

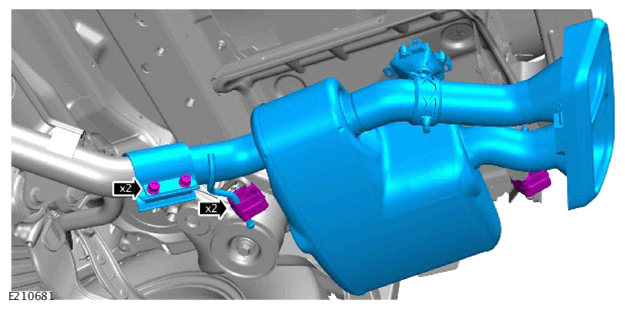

Install the rear silencer and secure and tighten the exhaust clamp finger tight.
Connect the active exhaust actuator electrical connector.
With assistance, install the rear bumper.
Refer to: REAR BUMPER
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

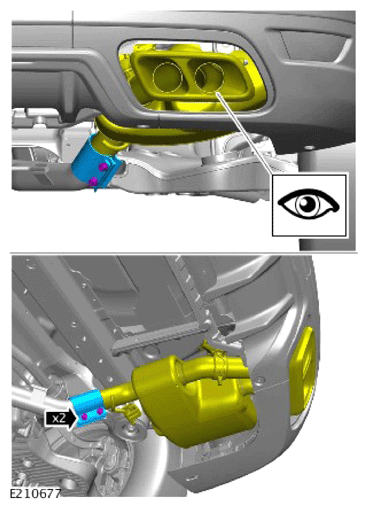

Position the rear silencer in the correct position as illustrated and fully tighten the exhaust clamp.

Torque : 55 Nm
