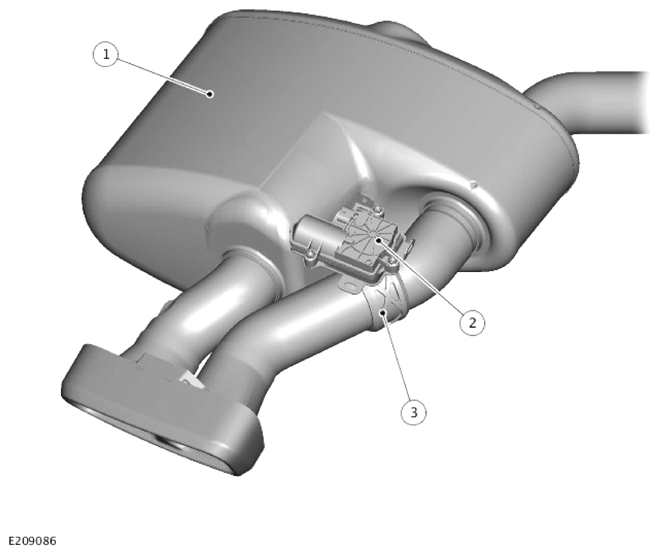

Exhaust Rear Section - Vehicles With Active Exhaust System
NOTE:
Left side is shown, right side is similar.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Rear silencer |
| 2 | Active exhaust actuator |
| 3 | Active exhaust valve |
On vehicles with active exhaust system, each rear silencer has a perforated pipe and a resonator box. The active exhaust system produces a louder exhaust sound during performance driving.
An exhaust valve is installed on the outlet pipe of each rear silencer, which is the part of the active exhaust system. The exhaust gases are expelled via 2 outlet pipes on each of the rear silencers. Polished stainless steel finishers are welded onto the outlet pipes.
