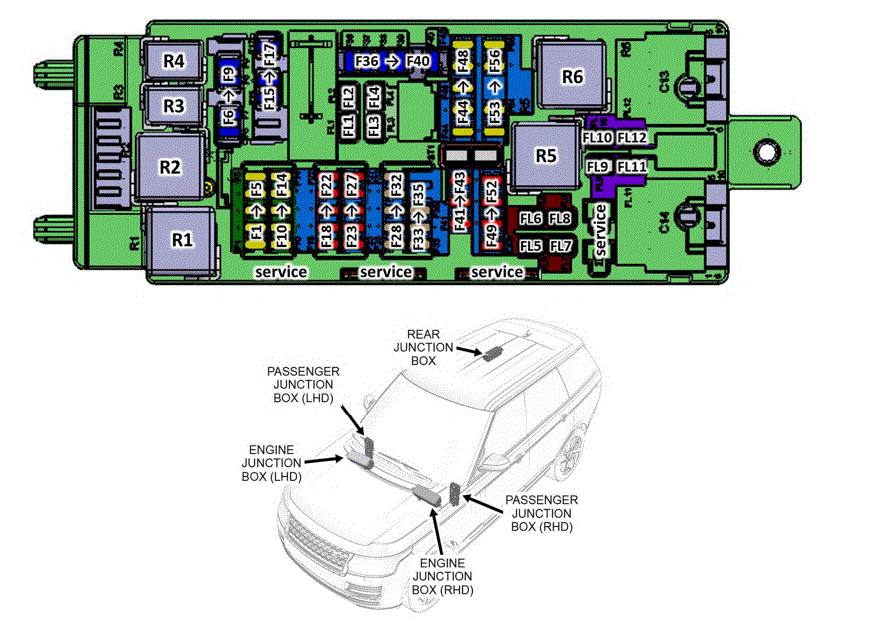

Passenger Junction Box
| Box Fuse Number | Circuit Fuse Number | Rating (Amps) | Function | Fuse Type | Box Pinout | Circuit Conn Reference |
| F1 | FUSE 1P | 20A | Cigar lighter/Socket-12V Accessory | Micro | C12-5 | C2BP02M-5 |
| F2 | FUSE 2P | 20A | Socket-Accessory 12V-Rear | Micro | C12-4 | C2BP02M-4 |
| F3 | FUSE 3P | 20A | Socket-Accessory 12V-Rear | Micro | C12-3 | C2BP02M-3 |
| F4 | FUSE 4P | 20A | Socket-Charging-USB-Floor Console- Rear-Left | Micro | C12-2 | C2BP02M-2 |
| F5 | FUSE 5P | - | - | - | - | - |
| F6 | FUSE 6P | - | - | - | - | - |
| F7 | FUSE 7P | 5A | Sounder- Battery Back-Up | Micro | C6-5 | C2BP02F-5 |
| F8 | FUSE 8P | 15A | Heater | Micro | C6-3 | C2BP02F-3 |
| F9 | FUSE 9P | - | - | - | - | - |
| F10 | FUSE 10P | 20A | Socket-12V Accessory-Glovebox | Micro | C12-10 | C2BP02M-10 |
| F11 | FUSE 11P | 30A | Module-Seat-Executive | Micro | C12-9 | C2BP02M-9 |
| F12 | FUSE 12P | 20A | Module-Roof Opening Panel Control | Micro | C12-8 | C2BP02M-8 |
| F13 | FUSE 13P | 20A | Module-Roof Opening Panel Control- P1 | Micro | C12-7 | C2BP02M-7 |
| F14 | FUSE 14P | 5A | Switchpack-Terrain- Response | Micro | C12-6 | C2BP02M-6 |
| F15 | FUSE 15P | - | - | - | - | - |
| F16 | FUSE 16P | - | - | - | - | - |
| F17 | FUSE 17P | - | - | - | - | - |
| F18 | FUSE 18P | 30A | Switchpack- Seat-Passenger Module-Seat-Executive |
Micro | C11-5 | C2BP02L-5 |
| F19 | FUSE 19P | - | - | - | - | - |
| F20 | FUSE 20P | 25A | Module-Rear Door-Left | Micro | C11-3 | C2BP02L-3 |
| F21 | FUSE 21P | 10A | Inverter-High Voltage Accessory Cool Box |
Micro | C11-2 | C2BP02L-2 |
| F22 | FUSE 22P | - | - | - | - | - |
| F23 | FUSE 23P | 20A | Module-Passenger Seat Module-Seat-Executive |
Micro | C11-10 | C2BP02L-10 |
| F24 | FUSE 24P | 25A | Module-Driver Door | Micro | C11-9 | C2BP02L-9 |
| F25 | FUSE 25P | 15A | Module-Control- Dynamic Response | Micro | C11-8 | C2BP02L-8 |
| F26 | FUSE 26P | 10A | Switchpack- Seat-Passenger | Micro | C11-7 | C2BP02L-7 |
| F27 | FUSE 27P | 5A | Module-Tire Pressure Monitoring System Module- Transceiver- Satellite Anchor Console-Overhead- Front Receiver- Fuel Fired Booster Heater (FFBH) |
Micro | C11-6 | C2BP02L-6 |
| F28 | FUSE 28P | 20A | Module-Driver Seat | Micro | C10-6 | C2BP02K-6 |
| F29 | FUSE 29P | 25A | Module-Rear Door-Right | Micro | C10-7 | C2BP02K-7 |
| F30 | FUSE 30P | - | - | - | - | - |
| F31 | FUSE 31P | 5A | Connector-Road Pricing | Micro | C10-9 | C2BP02K-9 |
| F32 | FUSE 32P | 10A | Motor-Release- EV Charging Port Flap | Micro | C10-10 | C2BP02K-10 |
| F33 | FUSE 33P | 20A | Module-Driver Seat | Micro | C10-1 | C2BP02K-1 |
| F34 | FUSE 34P | 25A | Module-Passenger Door | Micro | C10-2 | C2BP02K-2 |
| F35 | FUSE 35P | 5A | Switch-Brake Pedal | Micro | C10-3 | C2BP02K-3 |
| F36 | FUSE 36P | - | - | - | - | - |
| F37 | FUSE 37P | - | - | - | - | - |
| F38 | FUSE 38P | - | - | - | - | - |
| F39 | FUSE 39P | - | - | - | - | - |
| F40 | FUSE 40P | - | - | - | - | - |
| F41 | FUSE 41P | 5A | Module-Telematic Control | Micro | C14-3 | C2BP02P-3 |
| F42 | FUSE 42P | - | - | - | - | - |
| F43 | FUSE 43P | 10A | Clockspring | Micro | C14-4 | C2BP02P-4 |
| F44 | FUSE 44P | 10A | Module-Steering Wheel | Micro | C13-6 | C2BP02N-6 |
| F45 | FUSE 45P | 5A | Panel-Climate Control-Rear | Micro | C13-7 | C2BP02N-7 |
| F46 | FUSE 46P | 15A | Module-Climate Control Assembly- BCM-GWM |
Micro | C13-8 | C2BP02N-8 |
| F47 | FUSE 47P | - | - | - | - | - |
| F48 | FUSE 48P | - | - | - | - | - |
| F49 | FUSE 49P | 5A | Unit- Immobiliser Antenna | Micro | C14-2 | C2BP02P-2 |
| F50 | FUSE 50P | - | - | - | - | - |
| F51 | FUSE 51P | - | - | - | - | - |
| F52 | FUSE 52P | 5A | Module-Ioniser- Air Conditioning | Micro | C14-8 | C2BP02P-8 |
| F53 | FUSE 53P | - | - | - | - | - |
| F54 | FUSE 54P | 5A | Diagnostic Connector | Micro | C13-2 | C2BP02N-2 |
| F55 | FUSE 55P | - | - | - | - | - |
| F56 | FUSE 56P | 10A | HEVAC ECU (A/C Clutch) | Micro | C13-10 | C2BP02N-10 |
| FL1 | LINK 1P | 40A | Assembly- BCM-GWM | MCase | C7-1 | C2BP02G-1 |
| FL2 | LINK 2P | - | - | - | - | - |
| FL3 | LINK 3P | 40A | Assembly- BCM-GWM- Feed 2 | MCase | C7-2 | C2BP02G-2 |
| FL4 | LINK 4P | 20A | Fuel Fired Booster Heater | MCase | C7-4 | C2BP02G-4 |
| FL5 | LINK 5P | 40A | Retractor- Seatbelt-Left | MCase | C9-2 | C2BP02J-2 |
| FL6 | LINK 6P | - | - | - | - | - |
| FL7 | LINK 7P | 40A | Retractor- Seatbelt-Right | MCase | C9-4 | C2BP02J-4 |
| FL8 | LINK 8P | 30A | Module-Trailer- Brake Control | MCase | C9-3 | C2BP02J-3 |
| FL9 | LINK 9P | 40A | Heater-Electric Booster-PTC 2&3 | MCase | C2-2 | C2BP02B-2 |
| FL10 | LINK 10P | - | - | - | - | - |
| FL11 | LINK 11P | - | - | - | - | - |
| FL12 | LINK 12P | 40A | Heater-Electric Booster-PTC1 | MCase | C2-3 | C2BP02B-3 |
| R1 | RELAY 1P | N/A | Accessory- Socket | Power Mini | C8-2 | N/A |
| R2 | RELAY 2P | N/A | Extended Ignition | Mini | C8-3 | N/A |
| R3 | RELAY 3P | N/A | Pump- Auxiliary Coolant | Micro | C8-6 | N/A |
| R4 | RELAY 4P | N/A | - | - | - | N/A |
| R5 | RELAY 5P | N/A | PTC 2 | Mini | C14-10 | N/A |
| C14-9 | ||||||
| R6 | RELAY 6P | N/A | PTC1 | Mini | C13-9 | N/A |
| C14-10 | ||||||
| R7 | RELAY 7P | N/A | - | - | - | N/A |
| R8 | RELAY 8P | N/A | - | - | - | N/A |
| R9 | RELAY 9P | N/A | - | - | - | N/A |
| R10 | RELAY 10P | N/A | - | - | - | N/A |
| R11 | RELAY 11P | N/A | Quiescent Current | PCB | C10-4 | N/A |
| C8-4 |
