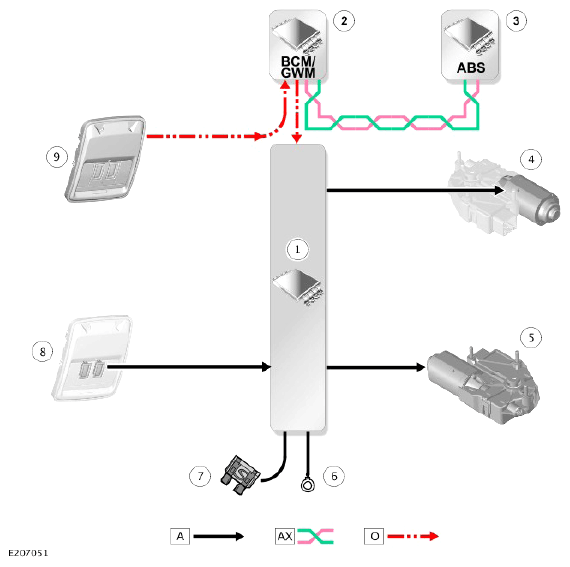

Control Diagram
A = Hardwired: AX = FlexRay bus: O = Local Interconnect Network (LIN) bus.
PART DESCRIPTION
| ITEM | DESCRIPTION |
|---|---|
| 1 | Roof opening panel control module |
| 2 | Body Control Module/Gateway Module (BCM/GWM) assembly |
| 3 | Anti-lock Brake System (ABS) control module |
| 4 | Roof blind motor |
| 5 | Roof opening panel motor |
| 6 | Ground |
| 7 | Power supply |
| 8 | Roof blind switch and roof opening panel switch - Front overhead console |
| 9 | Gesture roof blind sensor - Front overhead console |
