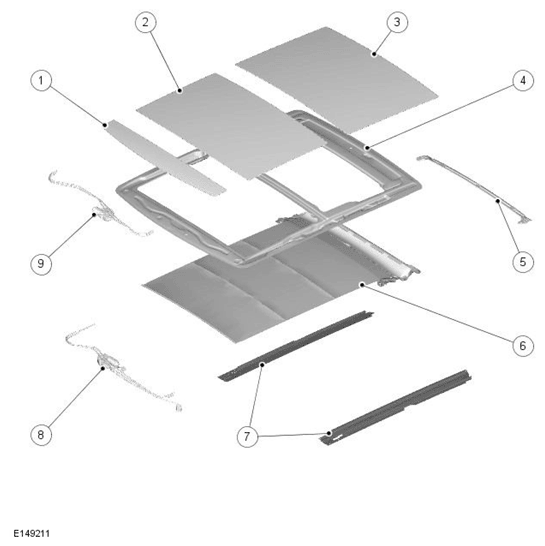

Roof Opening Panel Components
PART DESCRIPTION
| ITEM | DESCRIPTION |
|---|---|
| 1 | Front roof panel |
| 2 | Roof opening panel |
| 3 | Rear roof panel |
| 4 | Roof opening panel frame |
| 5 | Support bracket - Roof blind |
| 6 | Roof blind |
| 7 | Guide rails - Roof opening panel |
| 8 | Drive assembly - Roof blind |
| 9 | Drive assembly - Roof opening panel |

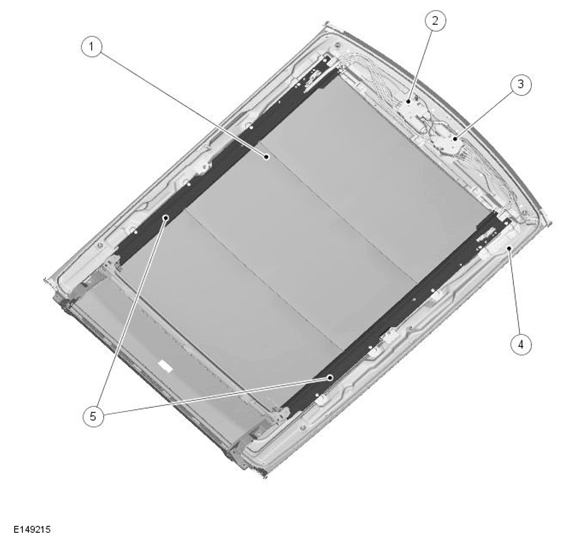

Roof Opening Panel Components - Interior View
PART DESCRIPTION
| ITEM | DESCRIPTION |
|---|---|
| 1 | Roof blind |
| 2 | Roof opening panel motor |
| 3 | Roof blind motor |
| 4 | Roof opening panel frame |
| 5 | Guide rails - Roof opening panel |
