Component Location

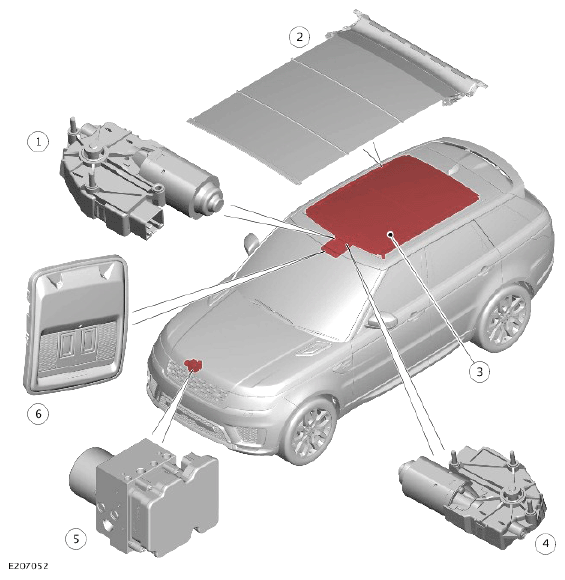

G12530303Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
PART DESCRIPTION

ITEM DESCRIPTION
1 Roof blind motor
2 Roof blind
3 Roof opening panel
4 Roof opening panel motor
5 Anti-lock Brake System (ABS) control module
6 Front overhead console
