Remote Operation

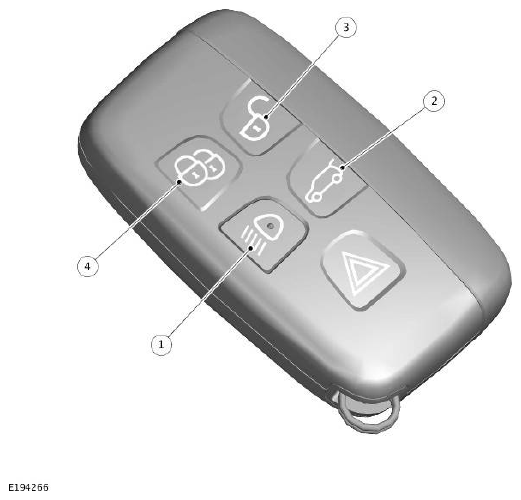

| Item | Description |
|---|---|
| 1 | Approach lamp switch |
| 2 | Tailgate opener switch |
| 3 | Unlock switch |
| 4 | Lock switch |
The switches on the smart key may be used to operate the air suspension system, allowing the vehicle to be raised or lowered remotely. This may be useful in attaching a trailer or loading the vehicle.
To change the suspension height using the smart key, the vehicle must be stationary, all the doors closed and the hazard warning lamps switched on.
Operate the smart key as follows:
- To lower the vehicle suspension, press and hold the switches 1 and 2 simultaneously.
- To raise the vehicle suspension, press and hold the switches 1 and 3 simultaneously.
- To return the vehicle to normal height, press and hold the switches 1 and 4 simultaneously.
The indicator lamps, on the electronic air suspension controls, indicate the current status of the rear suspension, after adjustment. If the rear suspension is currently above normal height, then both the normal height and off road height indicator lamps illuminate. If the rear suspension is currently below normal height, both the normal height and access height indicator lamps illuminate.
