Identification Codes (G2300273)
VIN Number
The VIN number will be found in three locations:
- Stamped on the front of the right front suspension turret.
- At the bottom of the windshield glass on the left side of the vehicle and visible from the outside.
- 4. NAS/Canada - On the Tire Data/Specification label attached to the front of the left B-pillar.

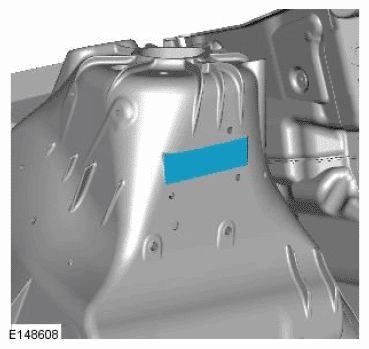

Right Front Suspension Turret VIN

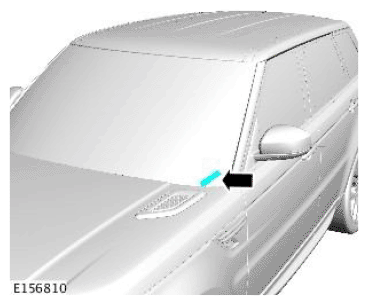

Windscreen VIN
VIN Label - NAS only
VIN Label - Canada only

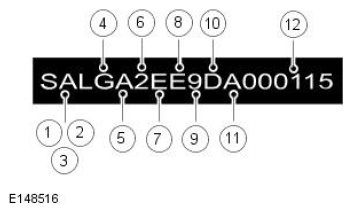

| VIN POSITION | CHARACTER | IDENTIFIES |
|---|---|---|
| 1 - 3 - World identifier | SAL | Jaguar Land Rover Ltd. (Land Rover) |
| 4 - Vehicle type | W | Range Rover Sport |
| 5 - Class | A | Standard |
| 6 - Body style | 2 | 5 Door station wagon: weight class E |
| 6 - Body style | 4 | 5 Door station wagon: weight class F |
| 7 - Transmission and steering | A | RHD Automatic: 8 speed |
| 7 - Transmission and steering | B | LHD Automatic: 8 speed |
| 8 - Engine | E | 508PS - AJ V8 5.0 SC Petrol |
| 8 - Engine | J | 448DT - V8 4.4 Diesel |
| 8 - Engine | K | 306DT - V6 3.0 Diesel |
| 8 - Engine | U | 306PT - 3.0 Petrol AJ20-P6 |
| 8 - Engine | V | 306PS - V6 3.0 SC Petrol |
| 8 - Engine | X | PT204 - 2.0 AJ200 Petrol |
| 8 - Engine | Y | PT204 - 2.0 AJ200 Petrol Plug-in Hybrid |
| 9 - Check digit | * | Derived by calculation |
| 10 - Model year | K | 2019 |
| 11 - Plant | A | Solihull |
| 12 - Serial number | 0 - 9 | Unique six digit serial number |
VIN number - NAS and Canada
| VIN POSITION | CHARACTER | IDENTIFIES |
|---|---|---|
| 1 - 3 - World identifier | SAL | Jaguar Land Rover Ltd. (Land Rover) |
| 4 - Model range | W | Range Rover Sport |
| 5 - Class | J | S |
| 5 - Class | G | SE |
| 5 - Class | R | HSE |
| 5 - Class | V | Autobiography |
| 5 - Class | Z | SVR |
| 6 - Body style | 2 | 5 Door station wagon: weight class E |
| 6 - Body style | 4 | 5 Door station wagon: weight class F |
| 7 - Transmission and steering | R | RHD Automatic: Engine Power 1 |
| 7 - Transmission and steering | S | LHD Automatic: Engine Power 2 |
| 7 - Transmission and steering | T | LHD Automatic: Engine Power 3 |
| 7 - Transmission and steering | U | LHD Automatic: Engine Power 4 |
| 8 - Engine | E | 508PS - AJ V8 5.0 SC Petrol |
| 8 - Engine | J | 448DT - V8 4.4 Diesel |
| 8 - Engine | K | 306DT - V6 3.0 Diesel |
| 8 - Engine | U | 306PT - 3.0 Petrol AJ20-P6 |
| 8 - Engine | V | 306PS - V6 3.0 SC Petrol |
| 8 - Engine | X | PT204 - 2.0 AJ200 Petrol |
| 8 - Engine | Y | PT204 - 2.0 AJ200 Petrol Plug-in Hybrid |
| 9 - Check digit | * | Derived by calculation |
| 10 - Model year | K | 2019 |
| 11 - Plant | A | Solihull |
| 12 - Serial number | 0 - 9 | Unique six digit serial number |

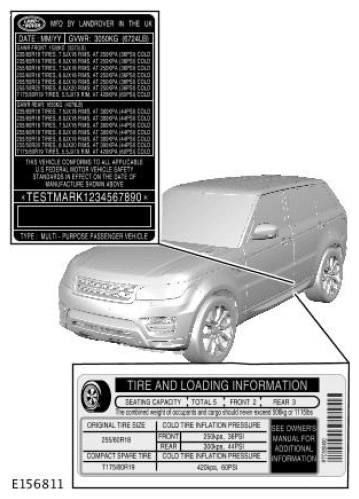

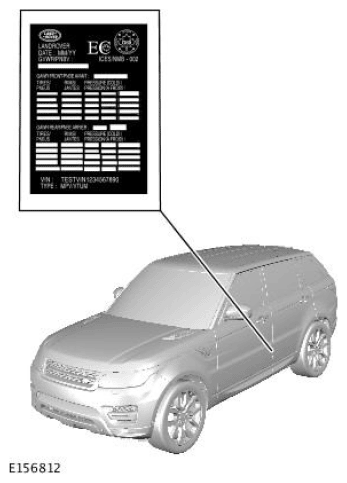

VIN/Certification/Tire Data Label - NAS only
The Certification Label contains the following VIN information:
- VIN Number
- Bar code identification

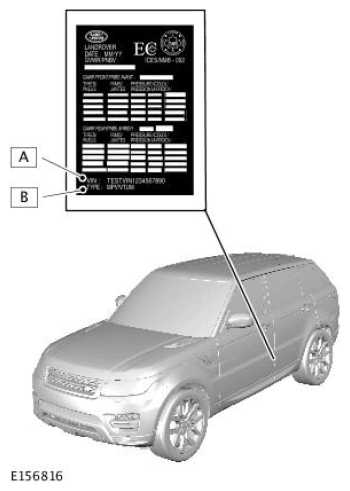

VIN/Tire Pressure Specification Label - Canada only
The Tire Pressure Certification Label contains the following VIN information:
- A - VIN Number
- B - Vehicle Type
Unit/Assembly Serial Number Locations
3.0L Petrol Engine Serial Number
The 3.0L Petrol Engine Serial Number is visible on the charge air cooler.
2.0L Diesel Engine Serial Number
The engine number is visible from under the vehicle on the left side of the engine block.

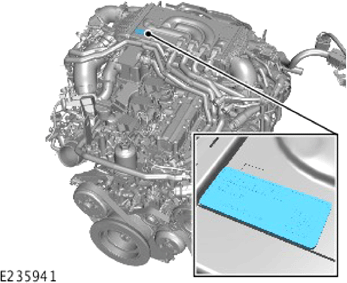

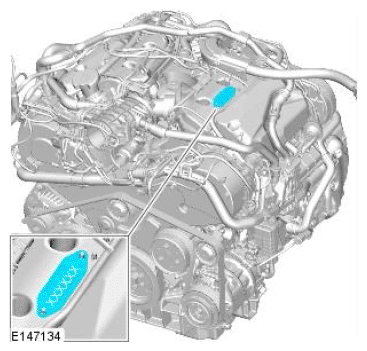

2.0L Petrol and 2.0L Petrol Plug-in Hybrid Engine Serial Numbers
The 2.0L Petrol Engine Serial Number is visible on the camshaft cover.

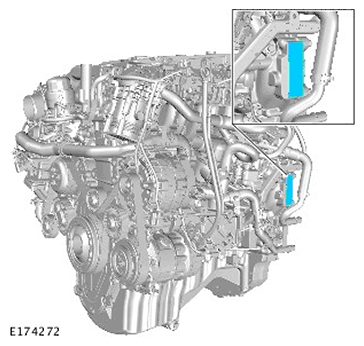

3.0L V6 Diesel Engine Serial Number
The 3.0L V6 Diesel Engine Serial Number is stamped on the left side of the cylinder head.
4.4L V8 Diesel Engine Serial Number
The 4.4L V8 Diesel Engine Serial Number is stamped on the left side of the cylinder head.

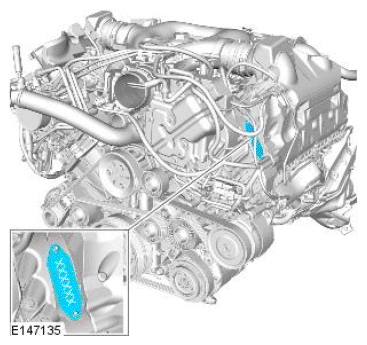

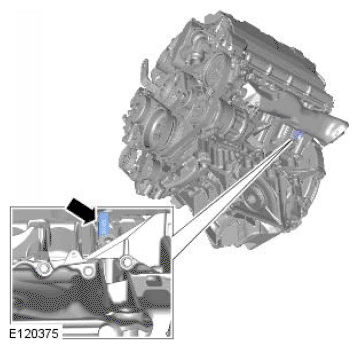

3.0L and 5.0L SC V8 Petrol Engine Serial Number
The 3.0L and 5.0L SC Petrol Engine Serial Number is stamped on the left side of the cylinder block.

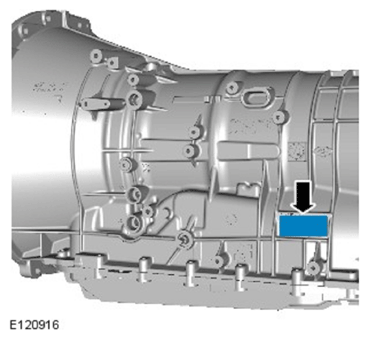

Transmission Serial Number
The transmission serial number is on a plate attached to the left side of the transmission casing.

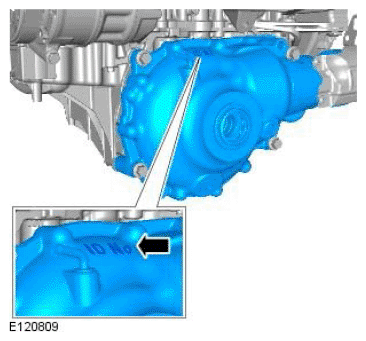

Front Differential Serial Number
The Front Differential Serial Number is stamped on top of the differential casing and is located above the removable cross member.

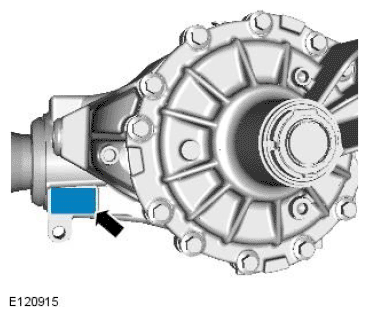

Rear Differential Serial Number
The Rear Differential Serial Number is stamped on the underside of the differential casing adjacent to the front mounting.

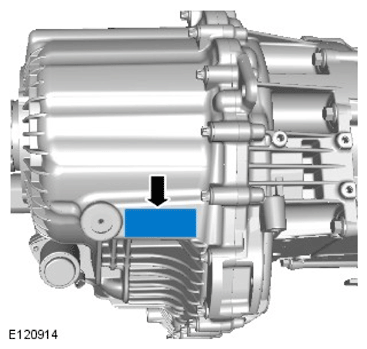

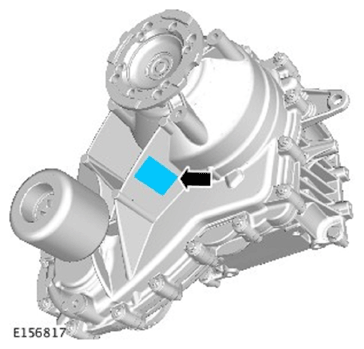

Twin Speed Transfer Case Serial Number
The Transfer Case serial number is stamped on the right side of the transfer case and may also be on a bar coded self-adhesive label attached to the case.
Single Speed Transfer Case Serial Number
The Single Speed Transfer Case serial number is stamped on the lower right side of the transfer case and may also be on a bar coded self-adhesive label attached to the case.
