Special Tool(S)
| 100-012 Slide Hammer |
|
| 303-1123 Locking Tool, Flywheel |
|
| 310-213 Fuel Injector Removal Adapter |
|
| JLR-303-1523 Remover/Installer, Camshaft Rear Pulley |
- This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
- This procedure contains illustrations showing certain components removed to provide extra clarity.
The following step(s) applies to:
All vehicles
- Remove the engine.
Refer to: ENGINE
Install the special tool.
Install the Special Tool(s): 303-1123
- Remove and discard the 8 drive plate bolts.
- Remove the drive plate.
Remove the special tool.
Remove the Special Tool(s): 303-1123

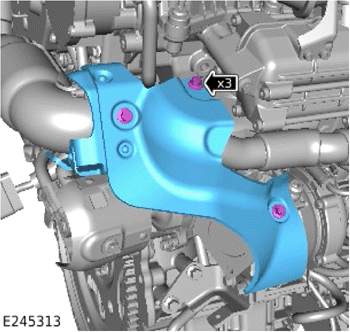

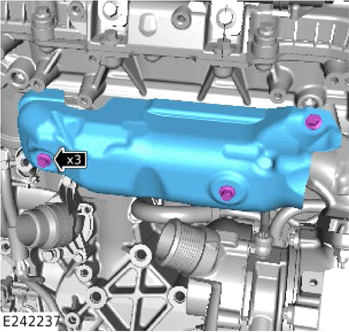

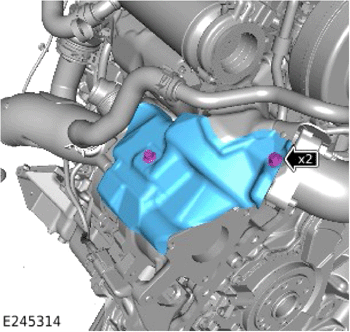

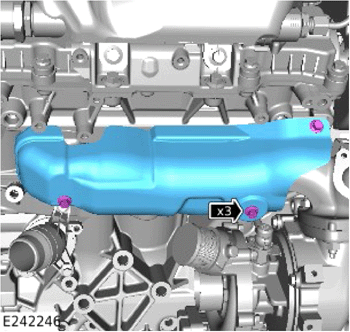

- Remove the 3 bolts.
- Remove the heatshield.
- Remove the 2 bolts.
- Remove the heatshield.

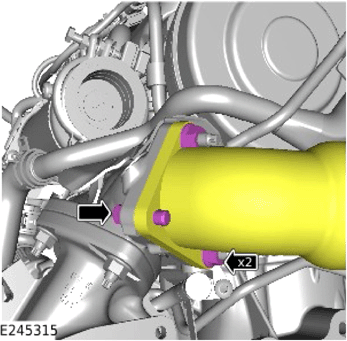

- Remove and discard the bolt.
- Remove and discard the 2 nuts.

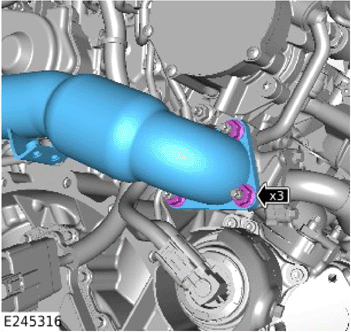

- Remove and discard the 3 nuts.
- Remove the exhaust manifold crossover pipe.
- Remove and discard the 2 gaskets.

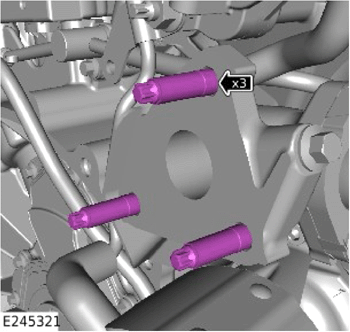

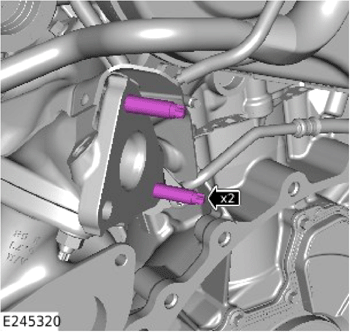

Remove and discard the 2 studs.
Remove and discard the 3 studs.

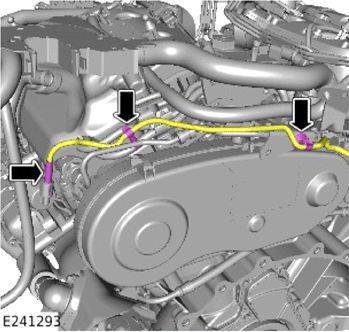

- Disconnect the electrical connector.
- Release the 2 clips.
The following step(s) applies to:
1 high pressure EGR valve & 1 Low pressure EGR valve
- Remove the 3 bolts.
- Release the clip.
- Remove the pipe assembly.
The following step(s) applies to:
2 High pressure EGR valves
- Remove the 3 bolts.
- Release the clip.
- Remove the pipe assembly.
- Disconnect the vacuum hose.
- Release the 2 clips.
The following step(s) applies to:
All vehicles

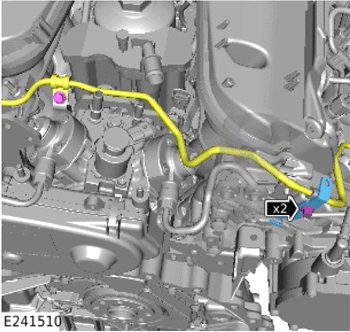

- Disconnect the 2 electrical connectors.
- Release the 3 clips.

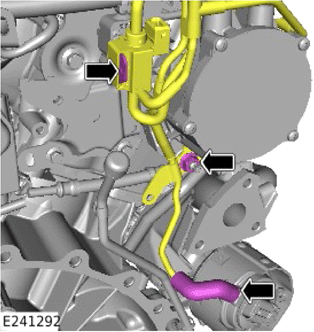

- Disconnect the vacuum hose.
- Remove the nut.
- Release the vacuum solenoid.
Disconnect the 2 vacuum hoses.
- Release the 2 clips.
- Disconnect the 2 electrical connectors.
- Remove the 2 bolts.
Remove the vacuum hose assembly.
-
NOTE: Repeat this step for the other side.

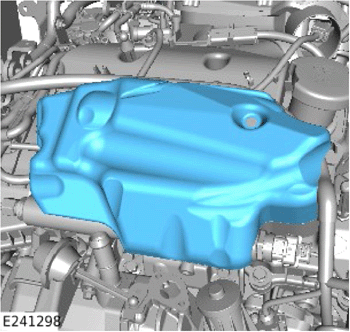

Remove the Noise, Vibration and Harshness (NVH) material.
The following step(s) applies to:
1 high pressure EGR valve & 1 Low pressure EGR valve
- Disconnect the electrical connector.
- Release the 2 hose clips.
- Remove the 2 bolts.
- Release the clip.
The following step(s) applies to:
2 High pressure EGR valves

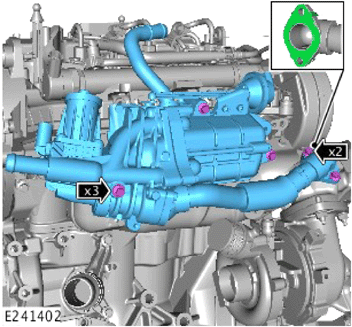

- Remove the 3 bolts.
- Remove the Exhaust Gas Recirculation (EGR) outlet pipe.
- Remove and discard the gasket.
- Disconnect the electrical connector.
- Release the 2 hose clips.
- Remove the bolt.
- Release the clip.
The following step(s) applies to:
All vehicles

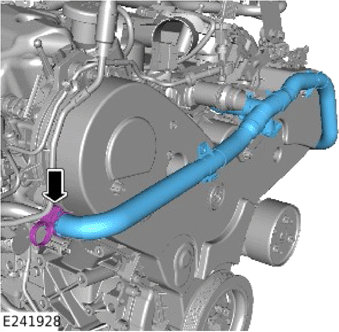

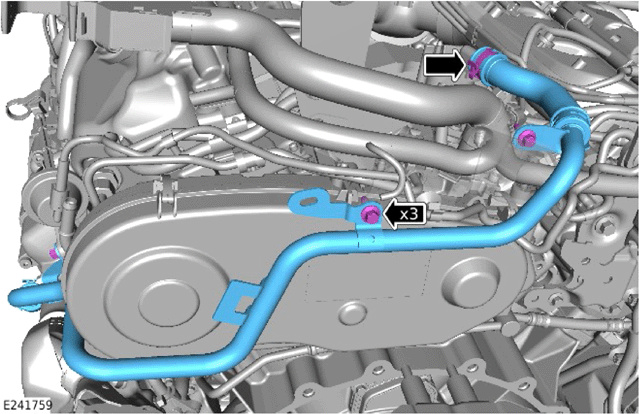

- Release the hose clip.
- Remove the coolant hose.
- Remove the 3 bolts.
- Remove the bracket.

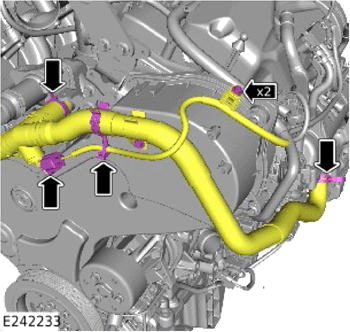

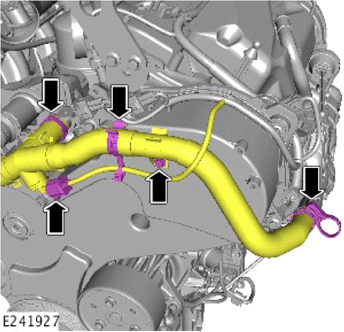

- Disconnect the 4 electrical connectors.
- Release the 3 clips.
The following step(s) applies to:
1 high pressure EGR valve & 1 Low pressure EGR valve
- Disconnect the 5 electrical connectors.
- Release the 4 clips.
The following step(s) applies to:
2 High pressure EGR valves
- Disconnect the 3 electrical connectors.
- Release the 3 clips.
The following step(s) applies to:
All vehicles

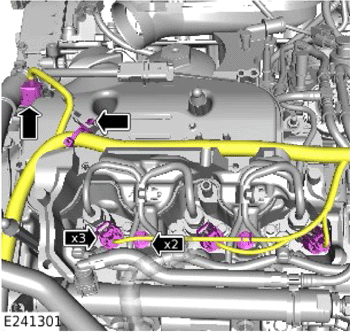

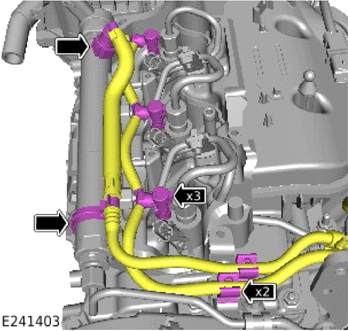

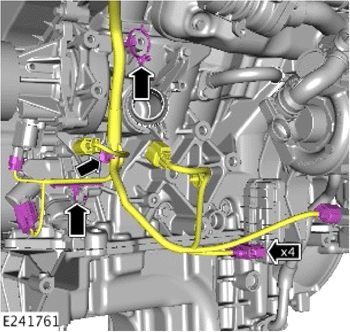

- Disconnect the 4 electrical connectors.
- Release the 3 clips.

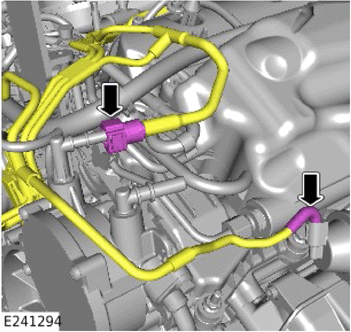

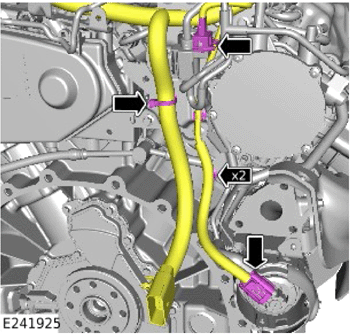

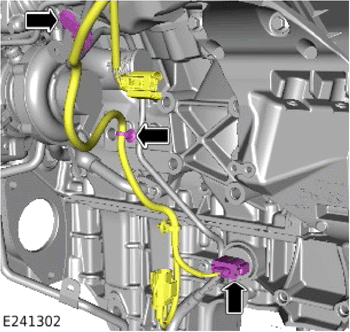

- Disconnect the electrical connector.
- Release the 2 clips.

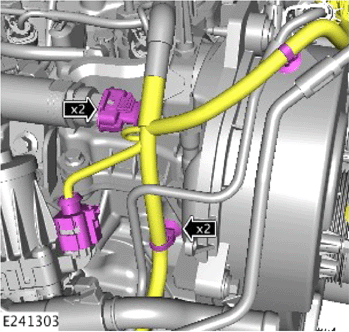

- Disconnect the 2 electrical connectors.
- Release the 2 clips.

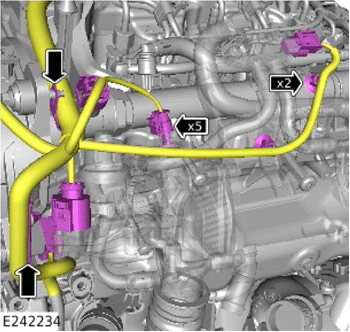

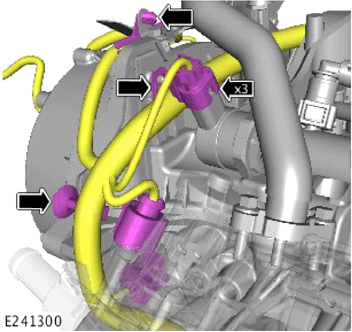

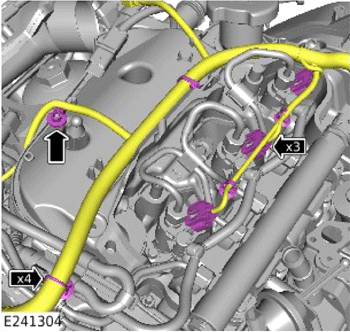

- Disconnect the 3 electrical connectors.
- Release the 5 clips.
- Disconnect the 2 electrical connectors.
- Release the 2 clips.
- Remove the bolt.
- Remove the nut.

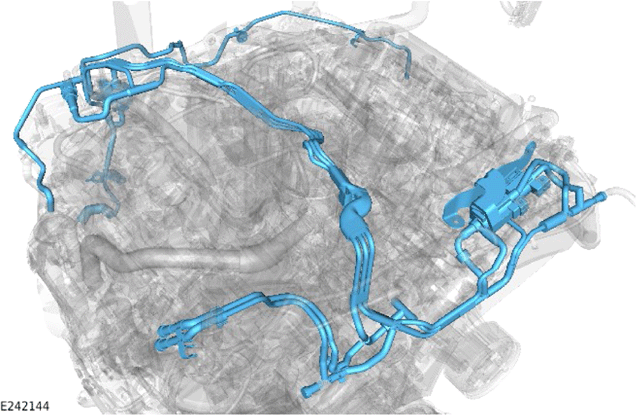

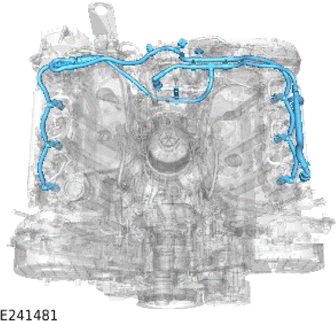

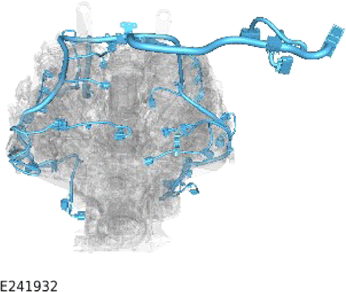

Remove the engine wiring harness.
-
CAUTION: Be prepared to collect escaping oil.

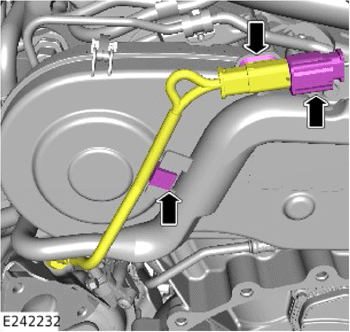

- Disconnect the connector.
- Remove the 2 bolts.
- Remove the nut.
- Remove the oil extraction pipe.
- Remove the 5 bolts.
- Remove the EGR valve.
- Remove and discard the gasket.

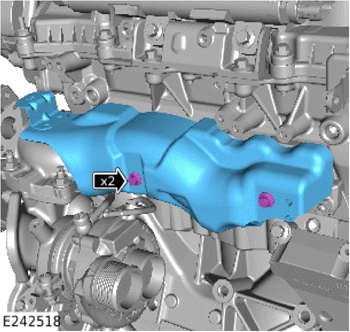

- Remove the 2 bolts.
- Remove the heatshield.
- Remove the 4 bolts.
- Remove and discard the gasket.
- Remove and discard the sealing washers.
- Remove and discard the O-ring seal.

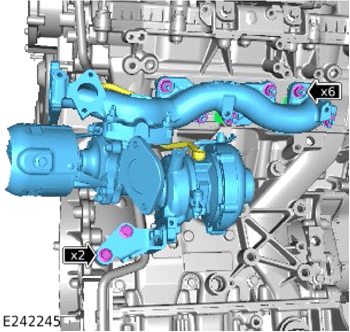

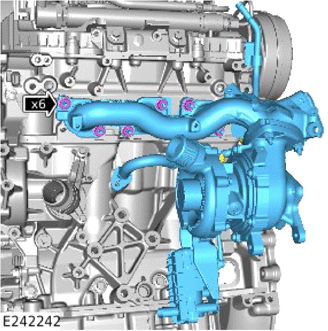

- Remove and discard the 6 nuts.
- Remove the 2 mounting bolts.
- Remove the exhaust manifold and turbocharger assembly.
- Remove and discard the gasket.
The following step(s) applies to:
1 high pressure EGR valve & 1 Low pressure EGR valve

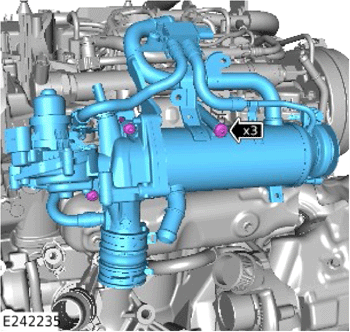

- Remove the 3 bolts.
- Remove the EGR cooler.
- Remove the 3 bolts.
- Remove the heatshield.
The following step(s) applies to:
2 High pressure EGR valves
- Remove the 5 bolts.
- Remove the EGR valve.
- Remove and discard the gasket.
- Remove the 3 bolts.
- Remove the heatshield.
The following step(s) applies to:
All vehicles

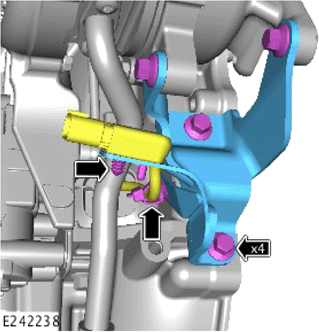

- Release the electrical connector.
- Remove the 4 bolts.
- Remove the mounting bracket.
- Remove the 4 bolts.
- Remove and discard the 2 gaskets.
- Remove the bolt.
- Remove and discard the 2 sealing washers.
- Remove the 4 bolts.
- Remove and discard the 2 gaskets.
- Remove and discard the 6 nuts.
- Remove the exhaust manifold and turbocharger assembly.
- Remove and discard the gasket.

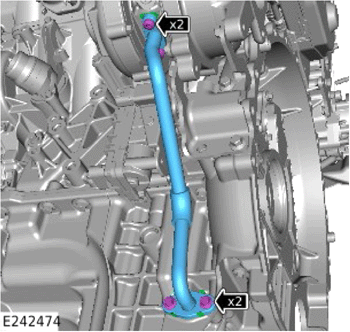

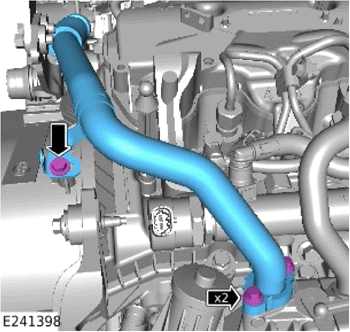

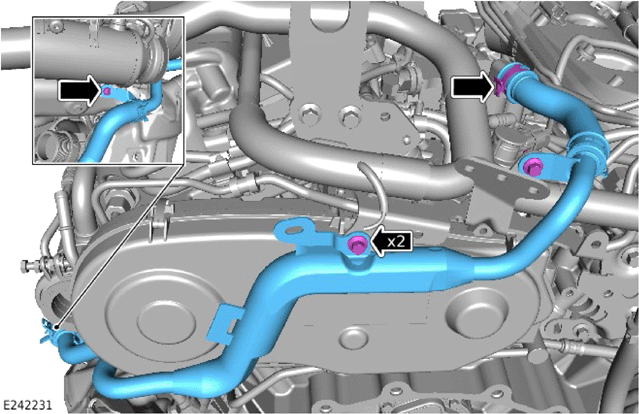

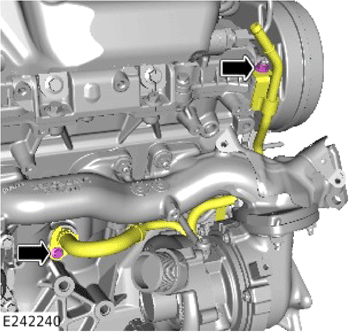

- Remove the 2 bolts.
- Remove the turbocharger coolant pipes.
- Remove and discard the gasket.
-
CAUTION: Be prepared to collect escaping oil.
- Remove the 4 bolts.
- Remove the oil pipe.
- Remove and discard the gasket.
- Remove and discard the O-ring.
-

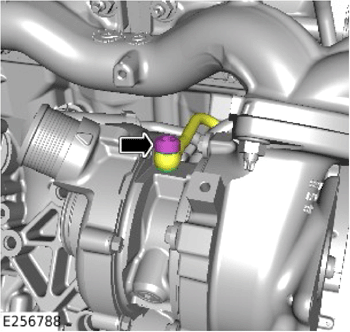

CAUTION: Be prepared to collect escaping oil.

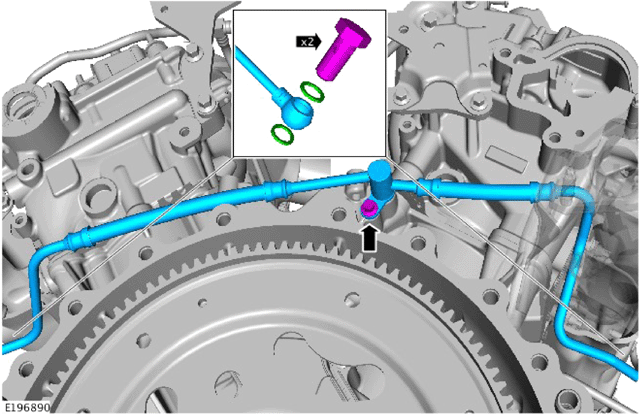

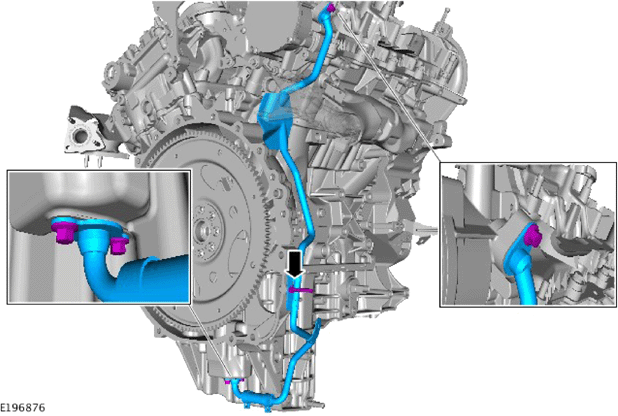

- Remove the bolt.
- Remove oil supply pipe.
- Remove and discard the sealing washers.
- Remove the 5 bolts.
- Remove the bracket.
- Remove the 2 bolts.
- Remove the bracket.
-
CAUTION: Be prepared to collect escaping fuel.

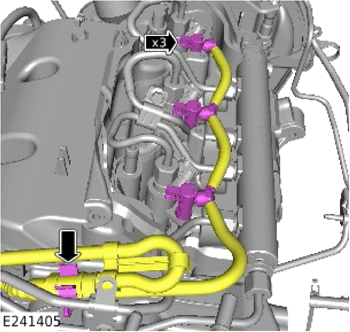

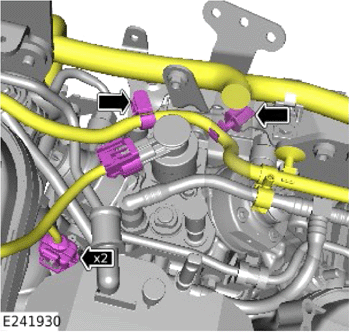

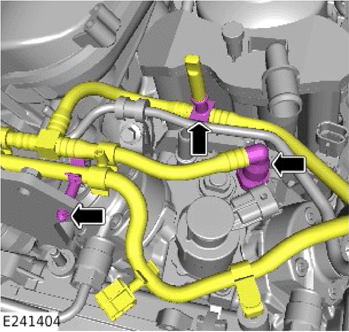

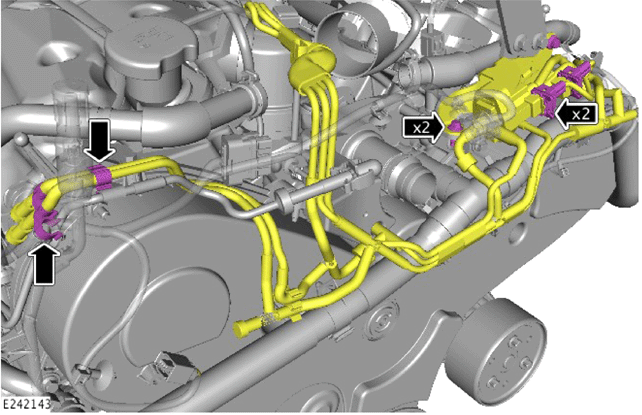

- Disconnect the 4 fuel line connectors.
- Release the 4 clips.
-
CAUTION: Be prepared to collect escaping fuel.
- Disconnect the fuel line connector.
- Release the 2 clips.
-
CAUTION: Be prepared to collect escaping fuel.
- Disconnect the 3 fuel line connectors.
- Release the clip.
Remove the fuel lines.
-
CAUTION: Be prepared to collect escaping fuel.
Remove the 2 bolts.
-
CAUTION: Be prepared to collect escaping fuel.
- Release the bracket bolt.
- Release the 7 fuel line unions.
- Remove and discard the 3 fuel lines.
-
CAUTION: Be prepared to collect escaping fuel.
- Release the 2 fuel line bracket bolts.
- Release the 7 fuel line unions.
- Remove and discard the 4 fuel lines.
-
CAUTION: Be prepared to collect escaping fuel.
- Release the 2 fuel line unions.
- Remove the 3 bolts.
- Remove the fuel rail assembly.
- Remove and discard the fuel line.
-
CAUTION: Be prepared to collect escaping fuel.
- Release the 2 fuel line unions.
- Remove the 2 bolts.
- Remove the fuel rail assembly.
- Remove and discard the fuel line.
-
NOTE: Repeat this step for the other side.

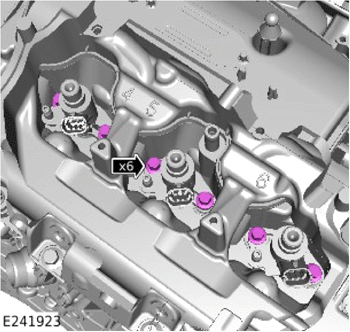

Remove the 6 bolts.
-
NOTE: Repeat this step for the remaining injectors.

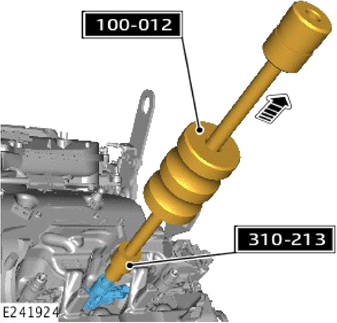

- Install the special tools.
Install the Special Tool(s): 310-213 , 100-012
- Remove the injector assembly.
- Install the special tools.
-
NOTE: Repeat this step for the remaining injectors.
- Remove and discard the 2 O-ring seals.
- Remove and discard the sealing washer.

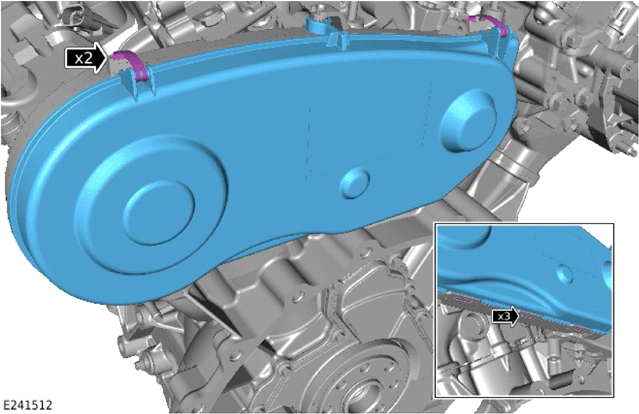

- Release the 2 clips.
- Remove the Rear End Accessory Drive (READ) cover.
-
CAUTION: Only rotate the crankshaft clockwise.
Rotate the crankshaft until the mark on the rear camshaft pulley is in the illustrated position.
Using a suitable cutting tool, remove and discard the READ belt.

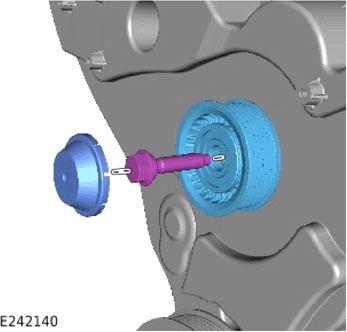

- Remove the bolt.
- Remove and discard the READ belt tensioner.

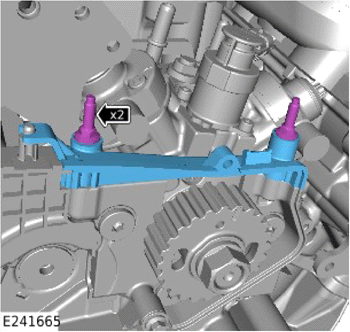

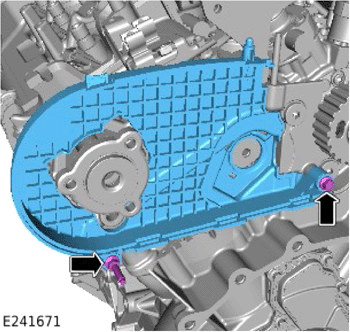

- Remove the 2 bolts.
- Remove the cover.
- Remove the upper engine vent oil separator.
- Remove and discard the seals.

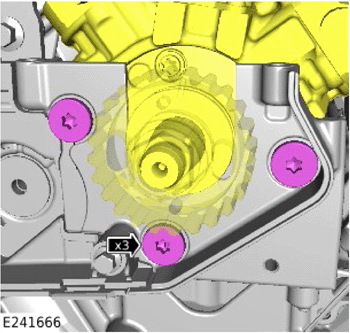

Remove the 3 bolts.

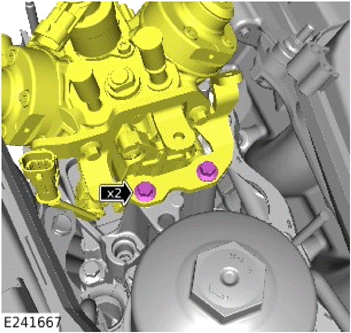

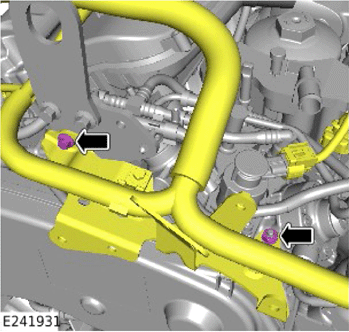

Remove the 2 bolts.

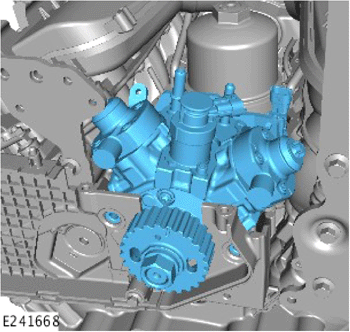

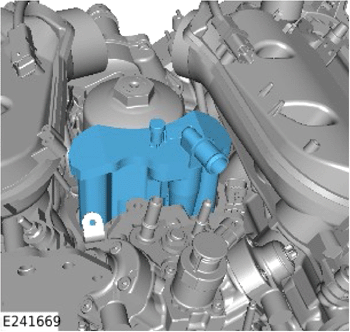

Remove the fuel pump assembly.

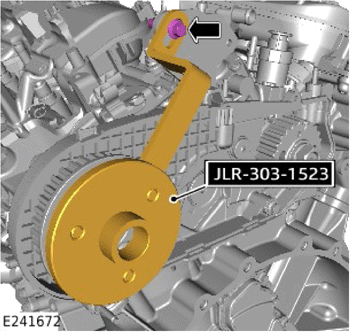

Install the special tool.
Install the Special Tool(s): JLR-303-1523
Torque : 10 Nm

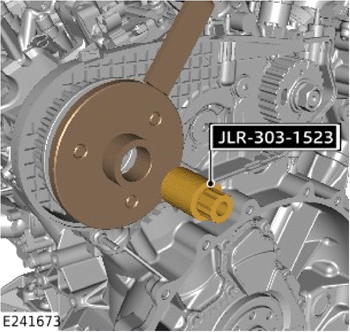

- Install the special tool.
Install the Special Tool(s): JLR-303-1523
- Remove and discard the camshaft sprocket bolt.
- Install the special tool.
- Remove the special tool.
Remove the Special Tool(s): JLR-303-1523
Remove the camshaft pulley.
- Remove the 2 bolts.
- Remove the cover.

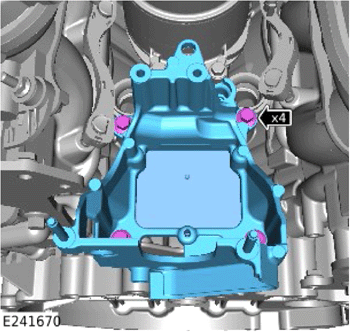

- Remove the 4 bolts.
- Remove the bracket and the lower engine vent oil separator.
- Remove and discard the seal.

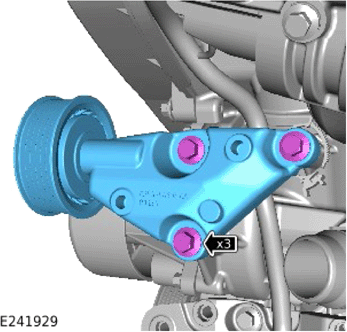

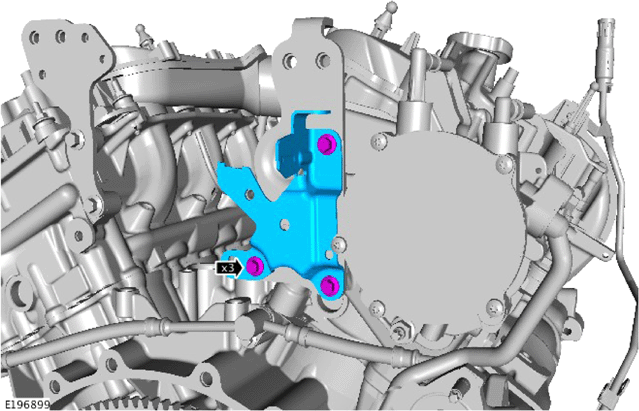

- Remove the 3 bolts.
- Remove the bracket.

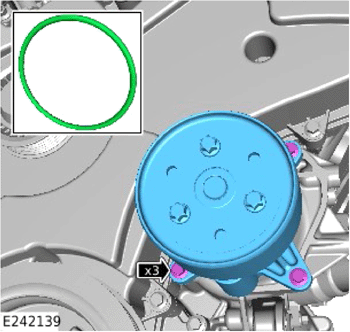

- Remove the 3 bolts.
- Remove the coolant pump.
- Remove and discard the O-ring seal.
- Remove the bolt cover.
- Remove the bolt.
- Remove the pulley.
- Remove and discard the 6 bolts.
- Remove the crankshaft damper pulley.

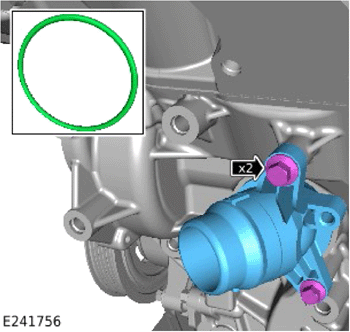

- Remove the 2 bolts.
- Remove the coolant inlet pipe.
- Remove and discard the O-ring seal.

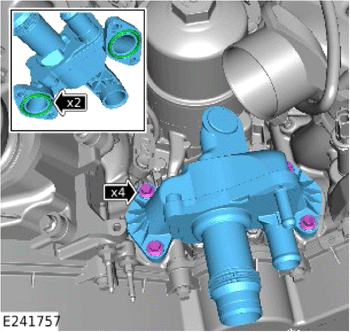

- Remove the 4 bolts.
- Remove the coolant outlet assembly.
- Remove and discard the 2 seals.
Remove the cover.

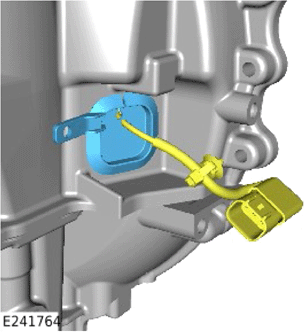

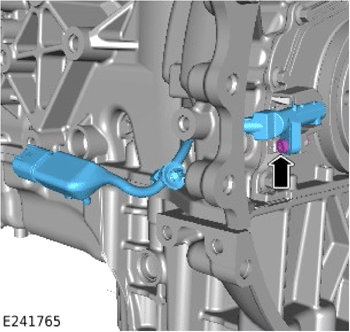

- Remove the bolt.
- Remove the Crankshaft Position Sensor (CKP) sensor.
-
NOTE: Repeat this step for the other side.
Remove the NVH material.
Remove the 2 mountings.
- Remove the 2 nuts.
- Remove the bracket.
-
NOTE: Repeat this step for the other side.
- Remove the 2 bolts.
- Remove the bracket.
- Remove the 2 bolts.
- Remove the bracket.
- Remove the 2 mountings.
- Remove the 2 nuts.
- Remove the bracket.
