Section 22 (Engine Cooling - TDV6 3.0L Diesel/TDV6 3.0L Diesel Gen 1.5/TDV6 3.0L Diesel - Gen 2 -- Range Rover Sport/L494)
>>
Engine Cooling - TDV6 3.0L Diesel/TDV6 3.0L Diesel - Gen 1.5/TDV6 3.0L Diesel - Gen 2
>>
Description And Operation
>>
Engine Cooling - TDV6 3.0L Diesel/TDV6 3.0L Diesel - Gen 1.5/TDV6 3.0L Diesel - Gen 2 (G1950019)
>>
Component Location
>>

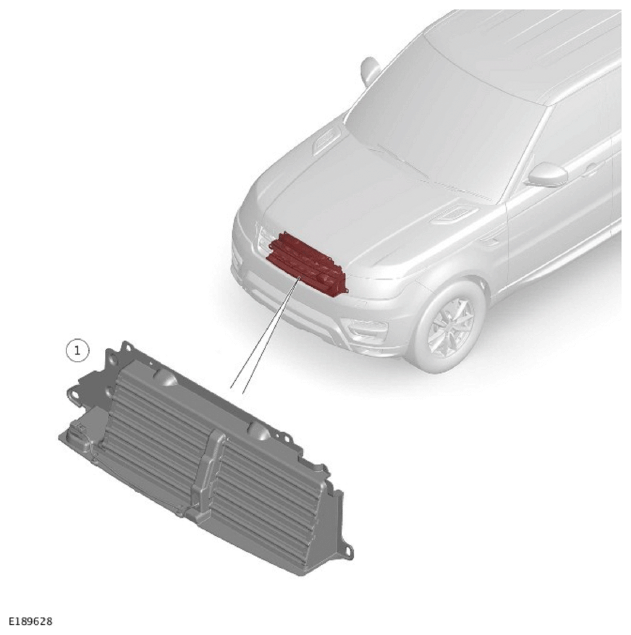

Component Location - 3 Of 3 - Active Grille Air Shutter - If Equipped
Component Location - 3 Of 3 - Active Grille Air Shutter - If Equipped
WARNING:
This page is about a different variant/trim than selected.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Item
Description
1
Active grille air shutter
