Electric Vehicle Quarantine (G2200010): Inspection

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

This procedure involves work on vehicle systems containing High Voltage (HV). Only technicians qualified to EVAP level or higher are allowed to perform this procedure.  It is mandated that all technicians involved with the steps in this procedure have read and understood the Electric Vehicle Safety Rules.

Refer to: ELECTRIC VEHICLE SAFETY RULES

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

1. WARNING: If any signs of fire or smoke are found, do not proceed any further with the procedure. Position the vehicle with ample space left between the vehicle and other vehicles, buildings and flammable or combustible objects, then contact the emergency services.

   Inspect the vehicle for any signs of fire or smoke.

2. WARNING:

   • If any concerns are found with the PHEV battery, the vehicle must now be placed in quarantine, proceed to Step  5.
   • If any concerns are found with any of the other High Voltage (HV) components or cabling, the vehicle must be powered down. Proceed to Step  4.

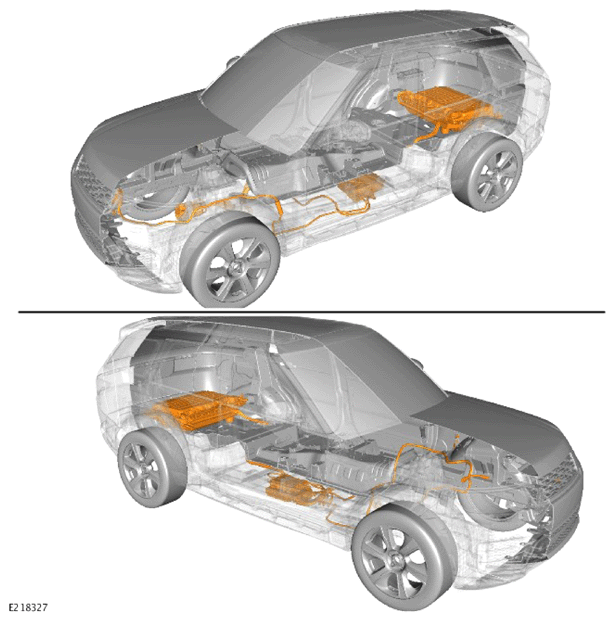

   Inspect the vehicle for damage, concentrating on the High Voltage (HV) components highlighted and the surrounding areas. If possible, open the hood, side doors and rear door to assist with the inspection. If no concerns are found, proceed to Step 3.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

1. Move the vehicle into the workshop.
2. WARNING:

   • If any concerns are found with the PHEV battery, the vehicle must now be placed in quarantine, proceed to Step  5.
   • If any concerns are found with any of the other High Voltage (HV) components or cabling, the vehicle must be powered down. Proceed to Step 4.

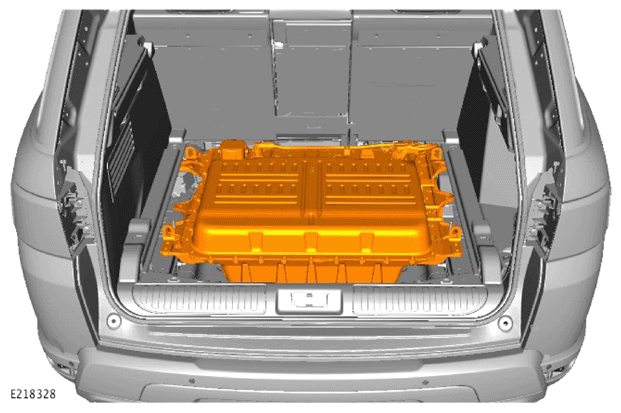

   Inspect the High Voltage (HV) system for damage, concentrating on the components highlighted and the surrounding area. If no concerns are found, there is no requirement to place the vehicle in quarantine. Normal repairs/diagnosis of the vehicle can commence.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

WARNING: Jaguar Land Rover Electric Vehicle Authorised Person (EVAP) trained technicians only.
• Power Down  the High Voltage (HV) system. Only technicians qualified to EVAP level are allowed to perform this procedure.  It is mandated that all technicians involved with the steps in this procedure have read and understood the Electric Vehicle Safety Rules.

  Refer to: ELECTRIC VEHICLE SAFETY RULES

• Do not proceed any further with this procedure. Normal repairs/diagnosis of the vehicle can commence.
