Component Location - 1 Of 1
WARNING: This page is about a different variant/trim than selected.
WARNING:
Do not do any work on the High Voltage (HV) system until the HV system on the vehicle is powered down.

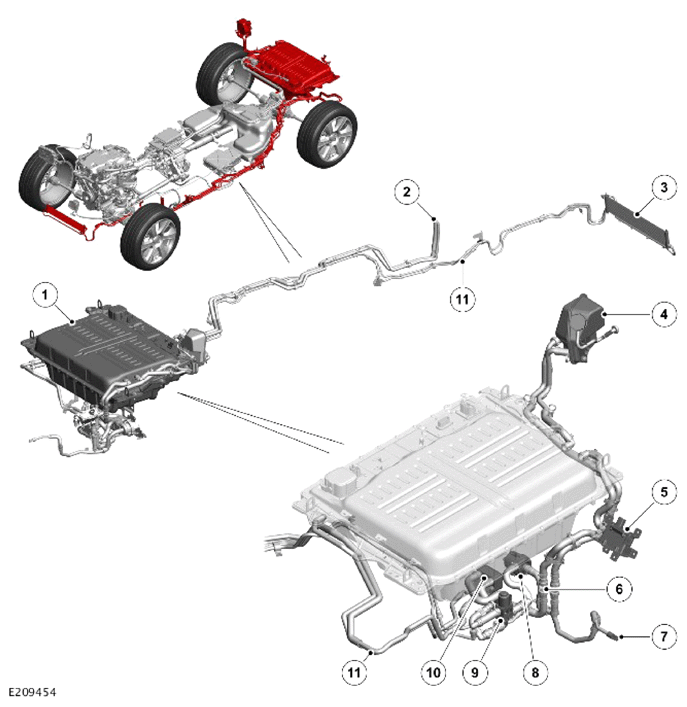

| ITEM | DESCRIPTION |
|---|---|
| 1 | PHEV battery |
| 2 | Air Conditioning (A/C) refrigerant connections and pipes |
| 3 | PHEV battery radiator |
| 4 | PHEV battery expansion tank |
| 5 | PHEV battery heater |
| 6 | Hose connector block |
| 7 | PHEV battery coolant fill up connection |
| 8 | PHEV battery coolant pump |
| 9 | PHEV battery changeover valve |
| 10 | PHEV battery cooler |
| 11 | Radiator connection hoses and pipes |
