Front Silencer (G2300913): Removal

WARNING: Observe due care when working near a hot exhaust system.

CAUTION: Make sure the exhaust system is supported at all times.

NOTE:

This procedure contains illustrations showing certain components removed to provide extra clarity.
This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.

Raise and support the vehicle on a suitable 2 post lift.
Refer to: JACKING AND LIFTING
Remove the exhaust system.
Refer to: EXHAUST SYSTEM
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

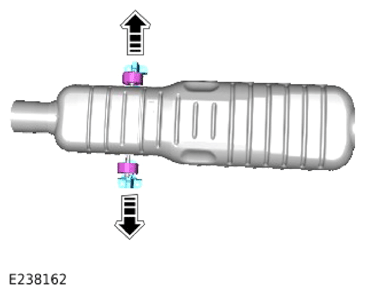

Remove the 2 exhaust hanger brackets from the front silencer.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

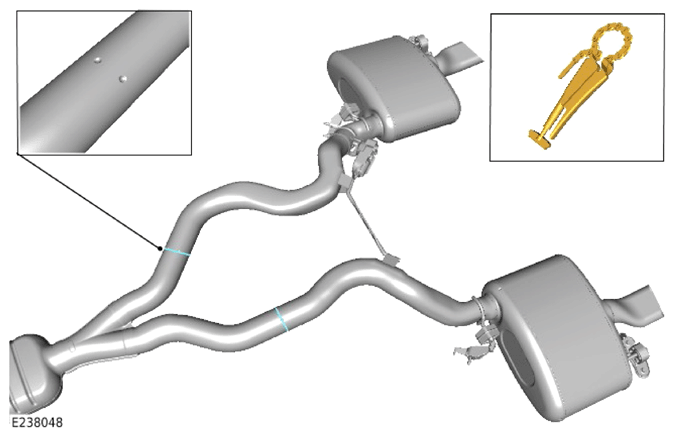

Use a suitable tool to cut and remove the rear silencers as illustrated.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

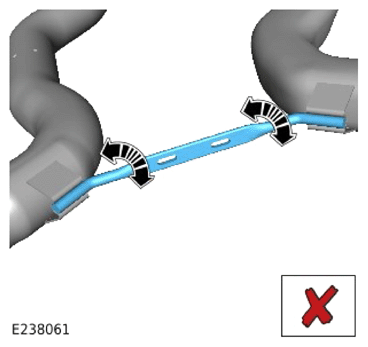

Make sure the rear silencer cross brace does not twist.
