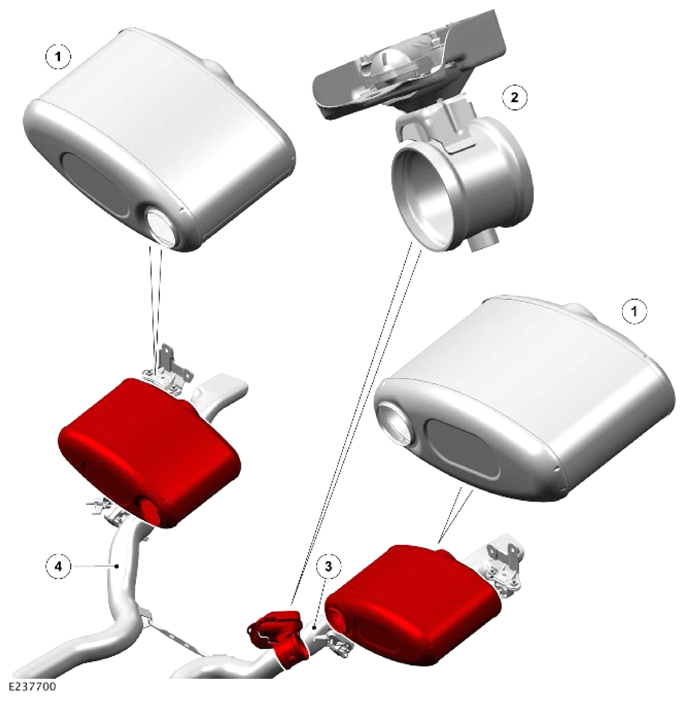

Rear Exhaust Section
| ITEM | DESCRIPTION |
|---|---|
| 1 | Rear silencers (quantity 2) |
| 2 | Active exhaust actuator |
| 3 | Rear left silencer inlet |
| 4 | Rear right silencer inlet |
The rear exhaust section is divided into rear right and left silencers. The exhaust gases are expelled from each rear silencer through a single outlet pipe. Each outlet pipe curves downward to direct exhaust gases away from the rear of the vehicle. Each side of the rear exhaust section is supported by 2 mounting rubbers. A mounting rubber is attached to a hanger bracket welded on the side of the rear subframe. The other is attached to a bracket welded to the vehicle body.
