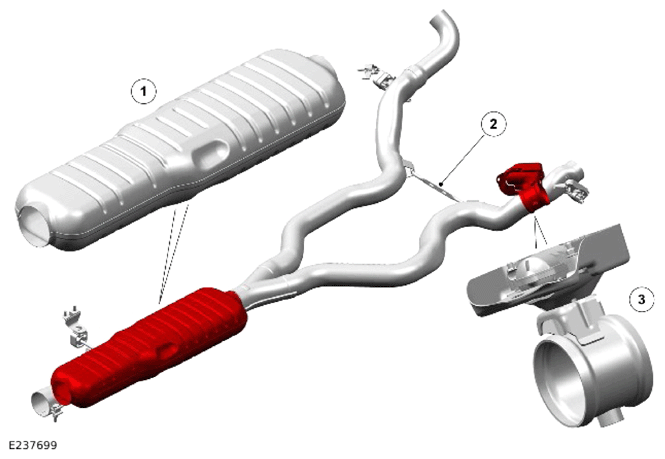

Center Exhaust Section
| ITEM | DESCRIPTION |
|---|---|
| 1 | Resonator |
| 2 | Support bracket |
| 3 | Active exhaust actuator |
The center exhaust section comprises of 1 inlet and 2 outlet pipes, a resonator and the active exhaust actuator. The inlet pipe of the center exhaust section is secured to the exhaust front section outlet pipe with a clamp. The center exhaust section attaches to the underside of the body with 2 mounting rubbers located on hanger brackets welded to the system. The mounting rubbers locate on corresponding hanger brackets bolted to the underside of the vehicle body.
